Vehicle Lifting: Locations

Jacking Points Body

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Bodywork jacking points

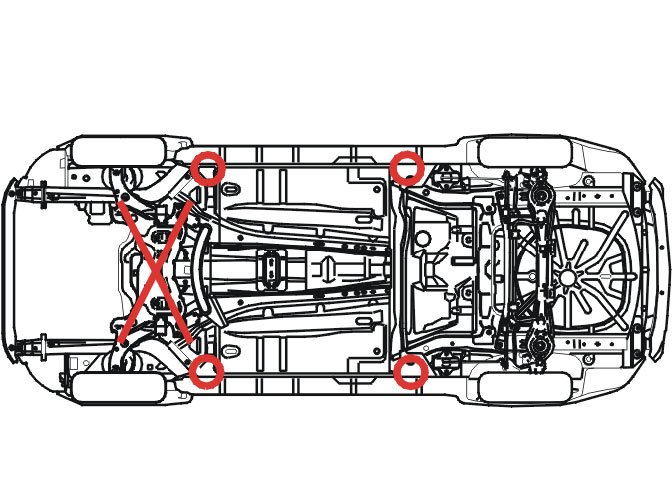

Lifting points for lifting the vehicle







When lifting the vehicle, the lifting points indicated in the illustration must be used.

The jacking plate must have a rubber pad to prevent damage to the vehicle.

Do not lift at the front suspension, as there is a risk of the wheel alignment being altered.
