Fuel System Pressure, Checking

Fuel system pressure, checking

Operation number: 23811

Note! Some variation in the illustrations may occur, but the essential information is always correct.

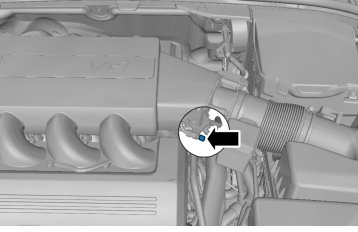

Depressurize the fuel system. Refer to: Fuel system, draining, B8444S, B6324S5 Draining The Fuel System

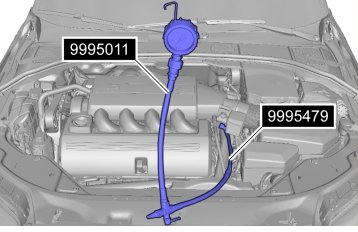

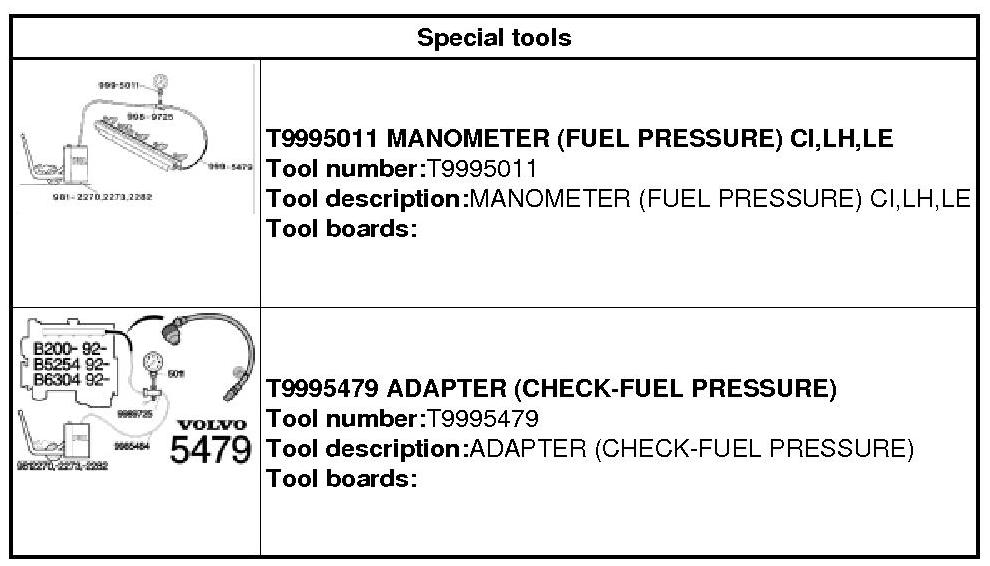

999 5011 MANOMETER 999 5011 Manometer

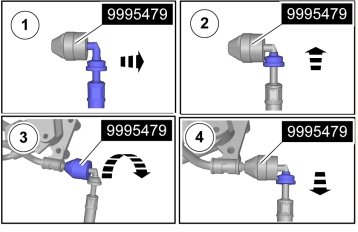

999 5479 ADAPTER 999 5479 Adapter










999 5011 MANOMETER 999 5011 Manometer
999 5479 ADAPTER 999 5479 Adapter
Start the engine and check the fuel line pressure. Refer to: Specifications, mechanical
Switch off the engine and check the residual pressure. Refer to: Specifications, mechanical

Depressurize the fuel system. Refer to: Fuel system, draining, B8444S, B6324S5 Draining The Fuel System

Remove in reverse order.
