Brake Disc Front, Replacing
Front brake discRemovalNote! Removal steps in this procedure may contain installation details.Remove the wheel Refer to: Wheels
Service and Repair Remove
brake pads front Refer to: Brake pads, front, B5254T7, AW55-50/51SN, B5254T7, M66

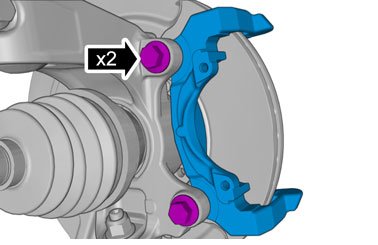

Brake Pads Front, Replacing Torque: Brake caliper in steering arm, front, 120 Nm

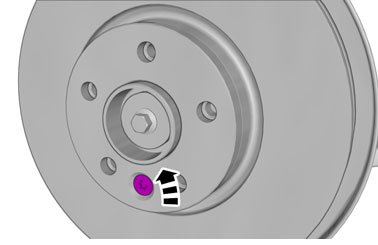

Torque: M6, 10 Nm
InstallationTo install, reverse the removal procedure.
