Engine Block, Installing Components

Engine block, installing components

Installation

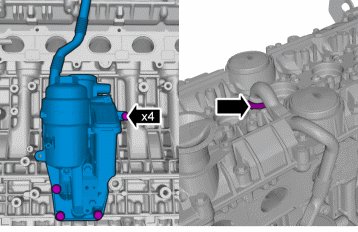

Torque: M8, 24 Nm





Install the following items:
1. Torque: M8, 24 Nm

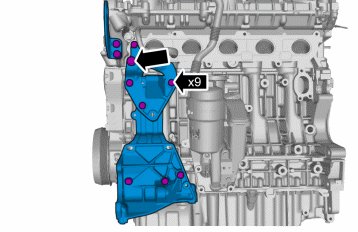

2. Torque: M10, 50 Nm

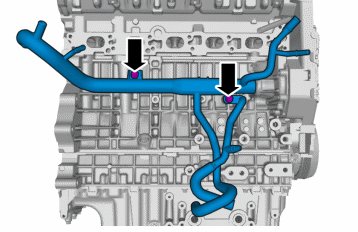

Torque: M8, 24 Nm

Install the following items:
- VVT solenoid Refer to: VVT solenoid, B5254T5 Service and Repair
- fuel injector Refer to: Fuel injector, B5254T5 Service and Repair
- Tensioner accessory drive belt Refer to: Accessory Drive Belt Tensioner, B5254T5, TF-80SC Service and Repair
- Knock sensor (KS) Refer to: Knock sensor (KS), B5254T5 Service and Repair
- Camshaft position sensor (CMP) Refer to: Camshaft position sensor (CMP), B5254T5 Service and Repair

Install the following items:
- thermostat Refer to: Thermostat, B5254T5 Service and Repair
- alternator Refer to: Generator, B5254T5 Service and Repair
- Oil cooler, engine Refer to: Oil cooler, engine, B5254T5 Service and Repair
- the intake manifold Refer to: Induction pipe, B5254T5, TF-80SC Service and Repair
- ignition coil Refer to: Ignition coil, B5254T5 Service and Repair

Install the following items:
- exhaust manifold Refer to: Exhaust manifold, B5254T5 Service and Repair
- Crankshaft position sensor (CKP) Refer to: Crankshaft position sensor (CKP), B5254T5, TF-80SC Service and Repair
- flange plate
