TV Amplifier, Replacing
Operation number: 39620-2

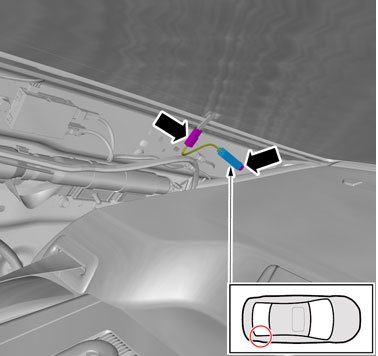

Television (TV) AmplifierRemovalNote! Removal steps in this procedure may contain installation details.Remove right side panel c-pillar Refer to: C-pillar trim panel
C-Pillar Trim Panel Torque: M6, 10 Nm
Remove left side panel c-pillar Refer to: C-pillar trim panel
C-Pillar Trim Panel Torque: M6, 10 Nm
InstallationTo install, reverse the removal procedure.
