Window Shade: Service and Repair

Sun blind, Rear door























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Sun blind, Rear door





- Lower the side window.





- Open the back door.

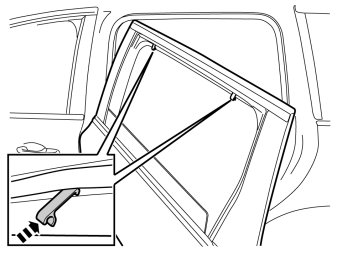

- Take two clips from the kit. Press the clips into place from the outside under the textile strip. The clips must be positioned as illustrated.

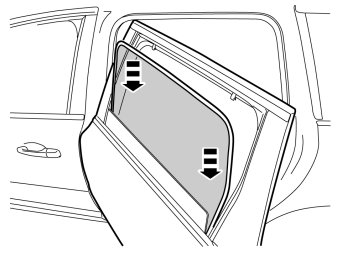

- Take the sun blind from the kit. From the outside insert it down inside the side window. The sun blind must be between the side window and the door panel.

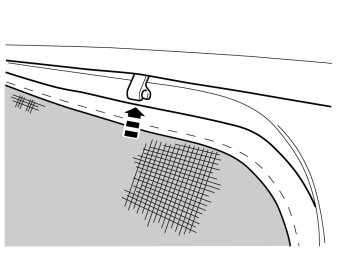

- Press the upper edge of the sun blind into the installed clips.

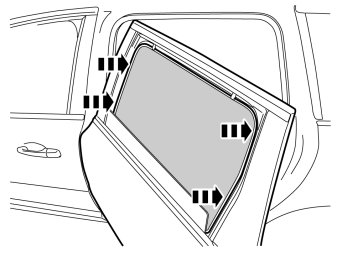

- Ensure to insert the ends of the sun blind so that they do not catch the side window when it is raised and lowered.

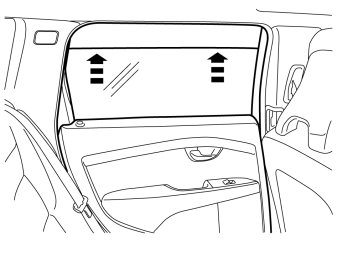

- Raise the side window.
- Repeat all steps for the other side.
