Condenser HVAC: Service and Repair

Condenser

Removal

Drain cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6324S5, B6304T4, B6324S4 Service and Repair

Drain refrigerant, drain Refer to: Refrigerant, draining Refrigerant, Draining

Warning! Be prepared to collect escaping fluid.

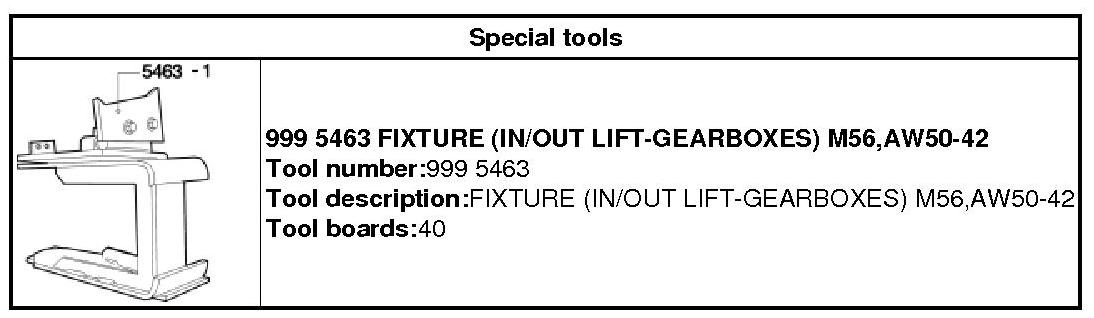

999 5463 FIXTURE 999 5463 Fixture

Installation

To install, reverse the removal procedure.

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6324S5, B6304T4, B6324S4 Service and Repair

Fill refrigerant, draining, vacuum-pumping and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, and Filling

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
