Wiper and Washer Systems: Adjustments

Wiper blade and wiper arm adjustment

Adjustment

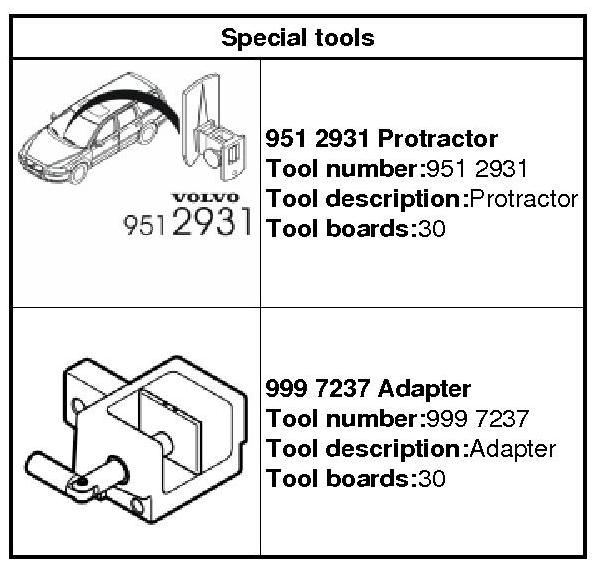

951 2931 Protractor 951 2931 Protractor 999 7237 Adapter 999 7237 Adapter

Caution! Make sure that the motor is in the park position.

Caution! Use suitable tape to protect the wiper arm.

Note! Make sure that the 3 marked points of the special tool are in contact with the glass.
