Blower Motor: Service and Repair






Operation number: 87306-2

Blower motor passenger compartment

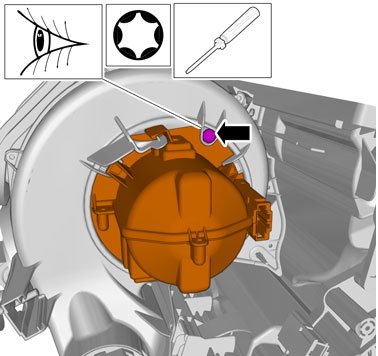

Removal





Remove the dashboard Refer to: Dashboard Dashboard

Vehicles with air quality sensor





All vehicles













Caution! Take extra care when handling the component.

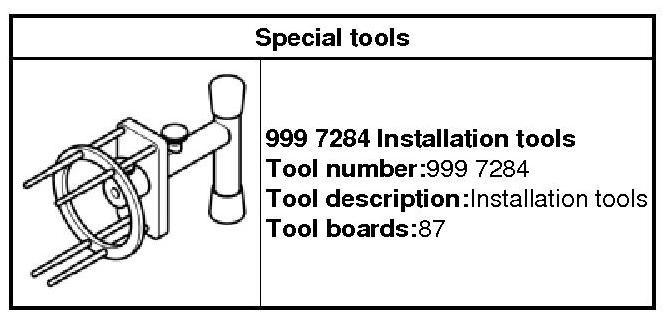

999 7284 Wrench 999 7284 Wrench













Caution! Take extra care when handling the component.

Installation

Caution! Make sure that the blower motor and fan assembly is placed on the bench with the fan pointing upwards.





Note! Replace with a screw if necessary.

If necessary

To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
