Leak Detection Pump: Service and Repair






Leak diagnostic pump

Removal

Note! Removal steps in this procedure may contain installation details.

Perform rear end, service position Refer to: Rear suspension, service position, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Service and Repair

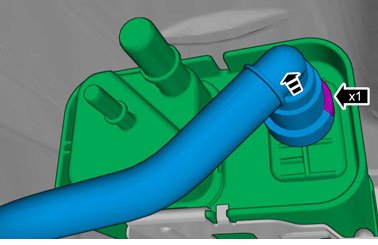

Note! Note the position of the component before removal.

Vehicles early version

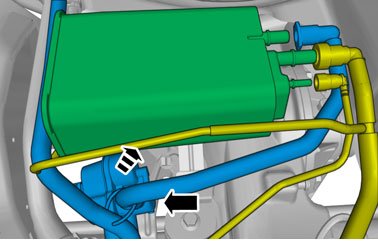

Note! Note the position of the component before removal.

Vehicles late version

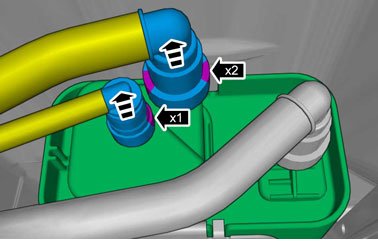

Note! Note the position of the component before removal.









Note! Note the position of the component before removal.





Note! Note the position of the component before removal.

Installation

To install, reverse the removal procedure.
