Differential Lock: Service and Repair






Operation number: 46505-2

Clutch four-wheel drive






Removal

Note! Removal steps in this procedure may contain installation details.

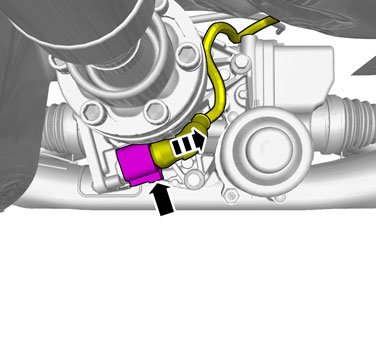

Loosen rear propeller shaft joint Refer to: Propeller shaft, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Removal and Replacement













Warning! Be prepared to collect escaping fluid.

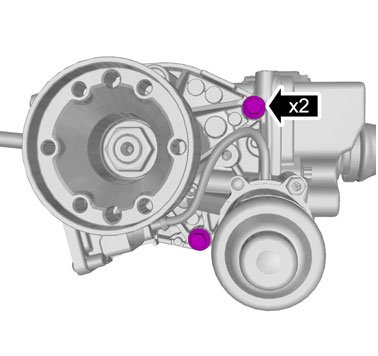

Torque: M8, 24 Nm





Warning! Be prepared to collect escaping fluid.

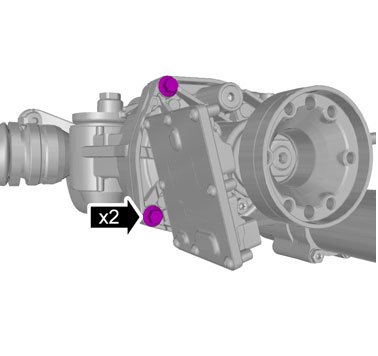

Torque: M8, 24 Nm





Warning! Be prepared to collect escaping fluid.

Installation

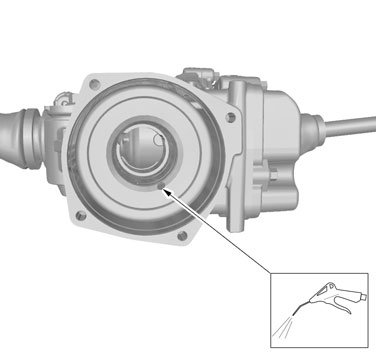

Warning! Wear safety goggles, protective gloves and ear protectors.

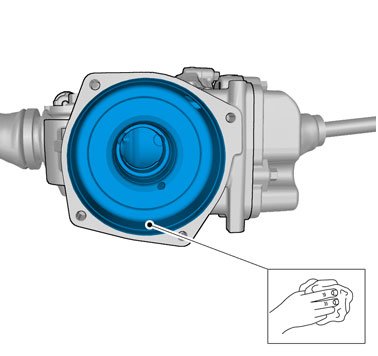

Caution! Use lint free cloth.





Use: Transmission oil, 30759648

To install, reverse the removal procedure.

Perform Active On Demand Coupling fluid level, check Refer to: Active On Demand Coupling Fluid Level Check, TF-80SC AWD Active On Demand Coupling Fluid Level Check

Order and download software Programming and Relearning

Calibrate
