Toe-In

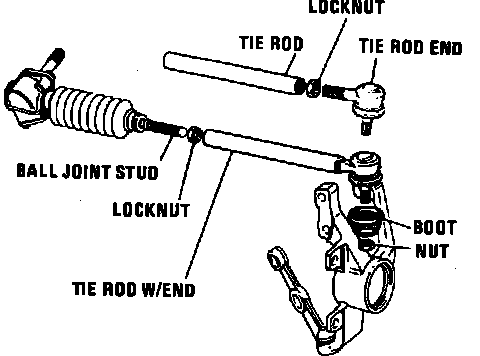

Fig. 1 Tie Rod Assembly:
Toe-in can be adjusted by turning tie rod ends in or out as necessary. Either of two types of tie rods may be used,
Fig. 1. If tie rod is supplied with sleeve, separate from tie rod end, adjust toe by loosening locknuts and turning sleeve. If rod is supplied with sleeve and tie rod end in one piece, adjust toe by loosening locknut and turning steering rack ball joint stud.
