Integrated Control Unit

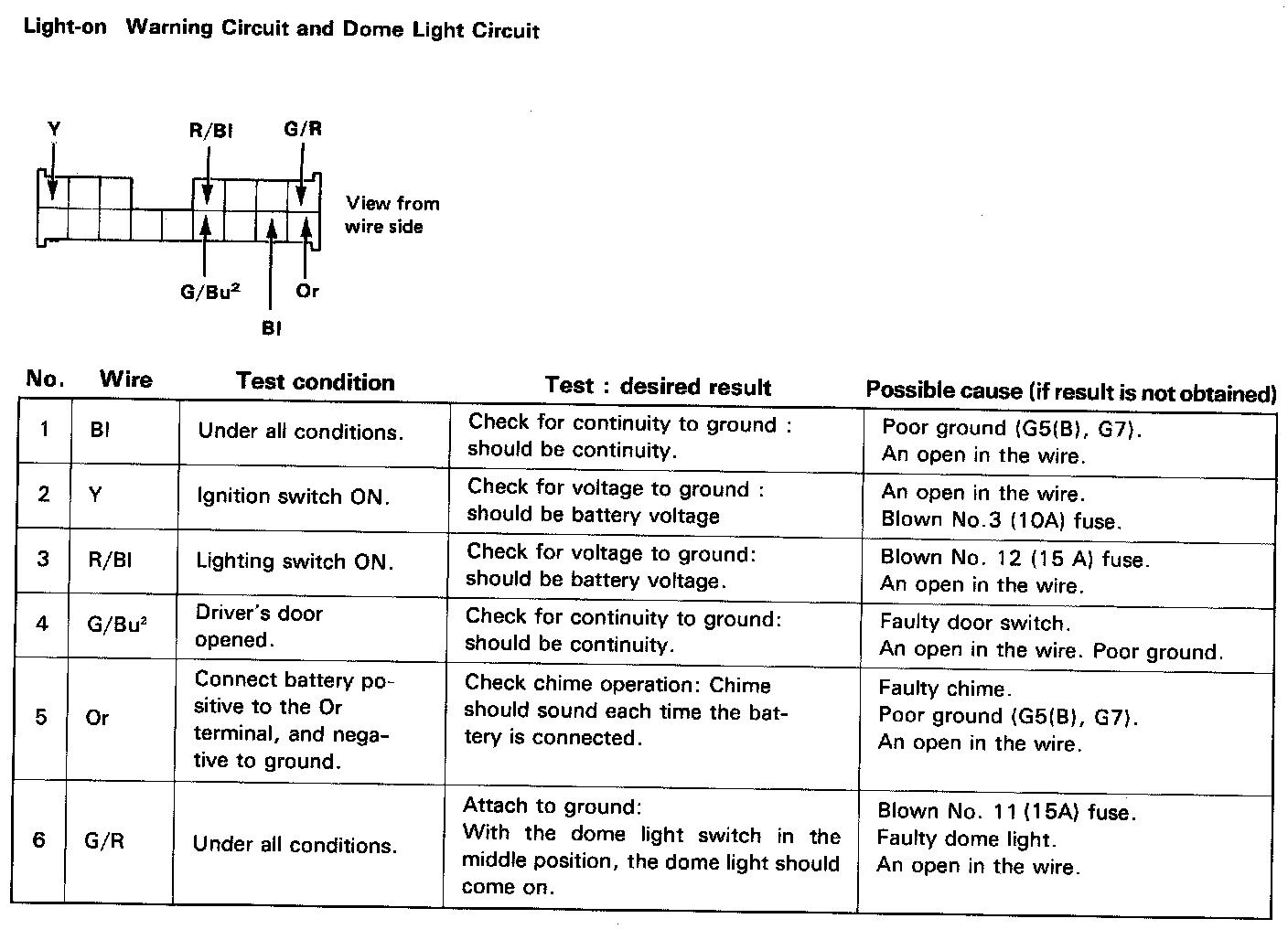

Integrated Control Unit Input TestLight-on Warning Circuit and Dome Light:

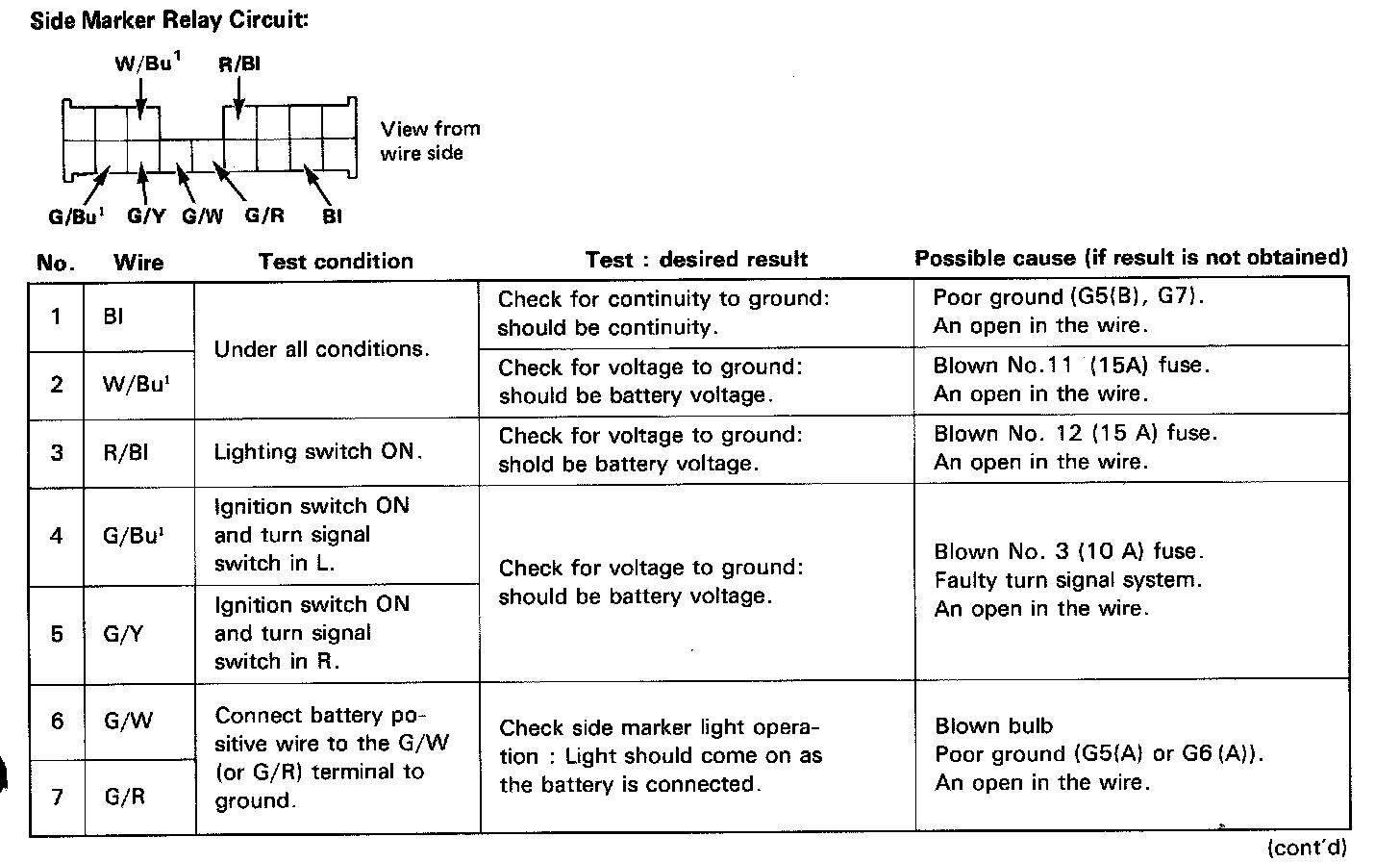

Side Marker Relay Circuit:
Remove the dashboard lower panel to disconnect the 16P connector from the
control unit.
Note: Replace the
control unit if all tests prove OK.
