Security Indicator Test
1.
Remove the driver's door panel.
Security Indicator Test:
2.

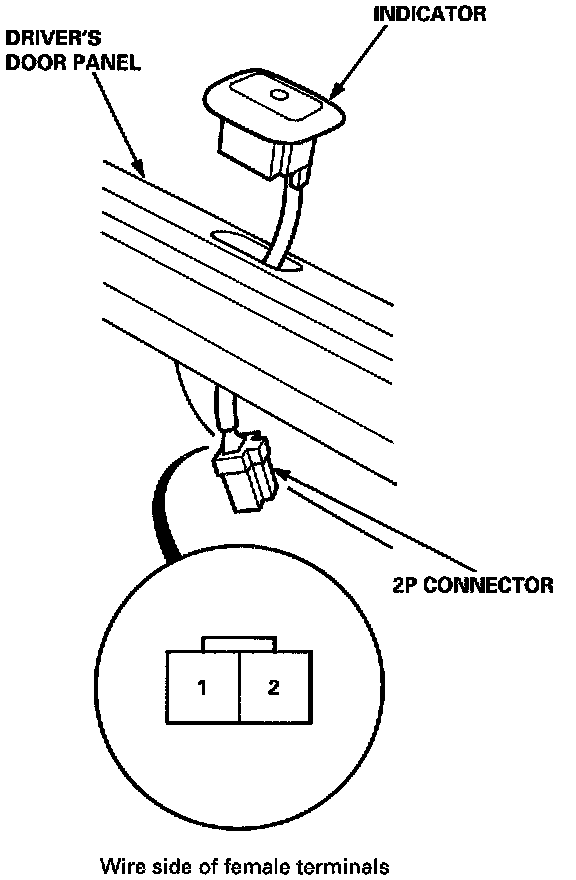

Disconnect the 2P connector from the security indicator.
3.
Carefully pry out the security indicator from the driver's door panel.
4.
Test the security indicator by connecting battery power to the No. 2 terminal, and ground to the No. 1 terminal.
5.
If the security indicator does not come on, replace it.
