Transmission Position Sensor/Switch: Adjustments

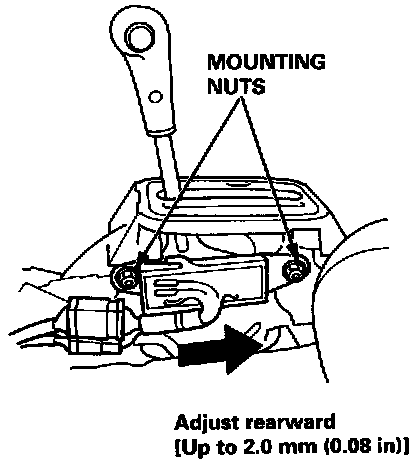

1. Shift to the [P] position, and loosen the A/T gear position switch mounting nuts.

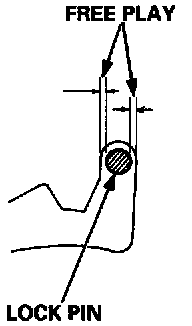

2. Move the A/T gear position switch to the rear side up to 2.0 mm (0.079 in). There should be continuity between the No. 7 and No. 10 terminals of the A/T gear position switch connector, in the range of the free play of the shift lever.
3. Check for continuity between each of the terminals.

NOTE: If adjustment is not possible, check for damage to the shift lever detent and/or the shift lever mounting bracket.
