Catalytic Converter: Service and Repair
Replacement 1.
Remove the Secondary HO2S:
a.
Disconnect the secondary HO2S connector, and remove the harness clamps, then remove the secondary HO2S.
3.

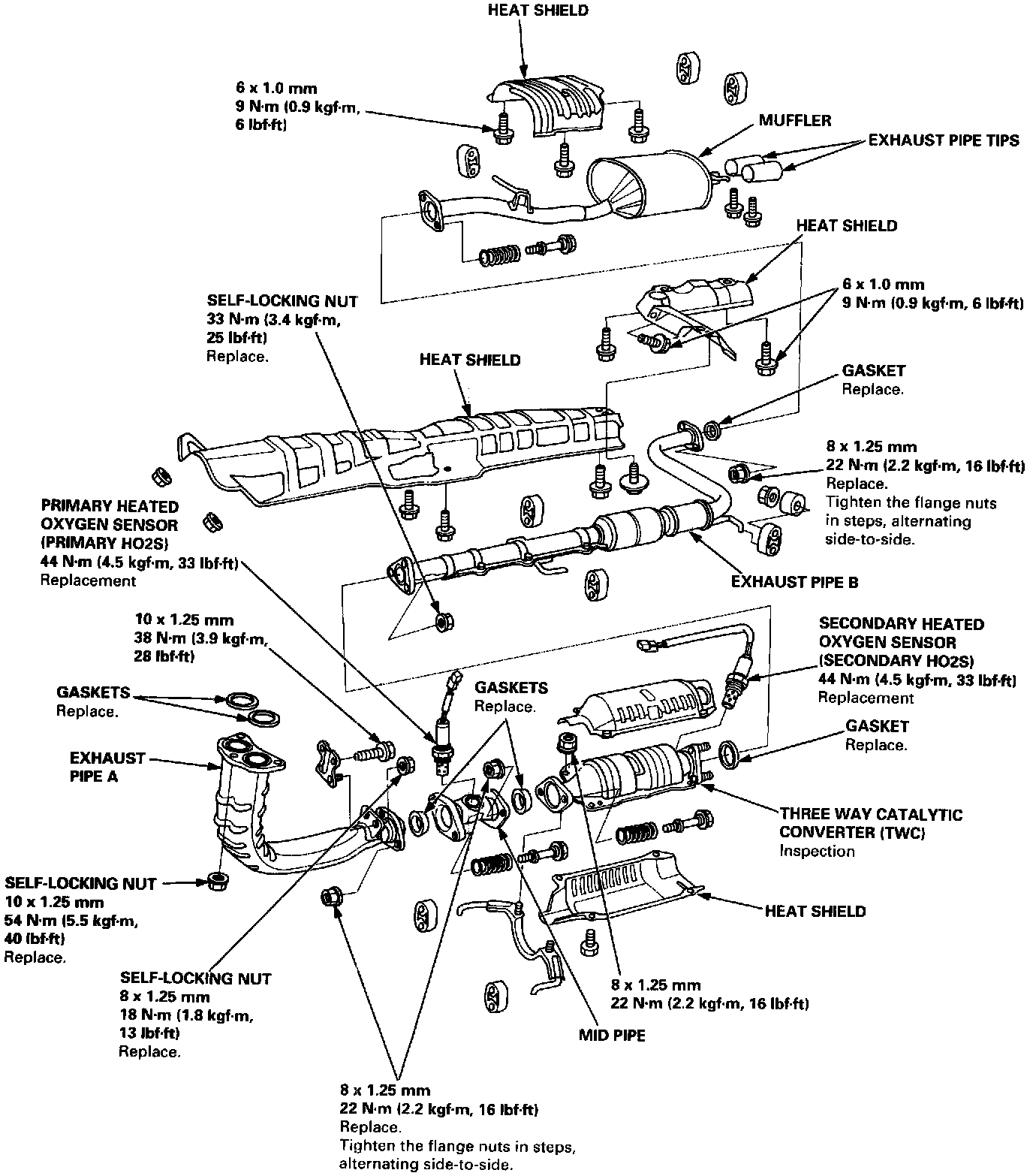

Replace catalytic convertor (see Image).
3.
Install the secondary HO2S.
Torque: 44 Nm (33 ft.lbs.)
