Rocker Arm Assembly

Tightening Sequence:

TIGHTENING SPECIFICATIONS

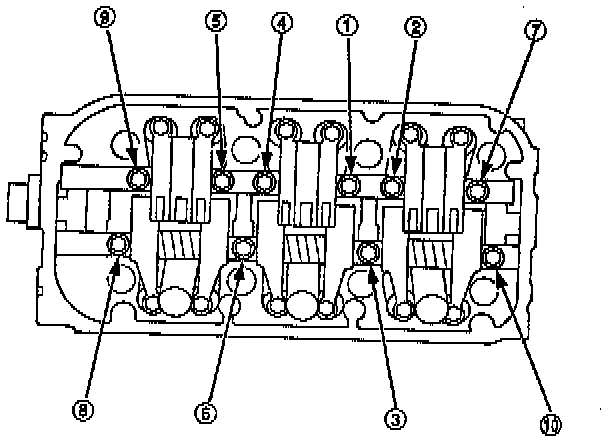

Tighten each 8 x 1.25 mm bolt two turns at a time in the sequence shown in image to ensure that the rockers do not bind on the valves. Repeat sequence until 24 Nm (17 ft. lbs.) is reached.

DIMENSIONS
Arm-To-Shaft Clearance:
Intake:
Standard (New) 0.026-0.067 mm (0.0010-0.0026 inch)
Service Limit 0.067 mm (0.0026 inch)
Exhaust:
Standard (New) 0.026-0.077 mm (0.0010-0.0030 inch)
Service Limit 0.077 mm (0.0030 inch)
