Transmission Speed Sensor: Service and Repair
1.
Disconnect the
speed sensor connectors.
2.

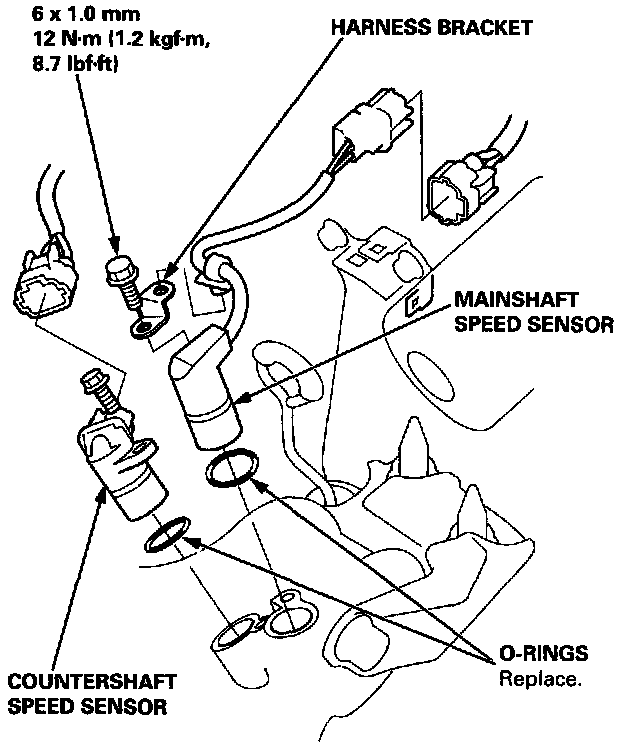

Remove the 6 mm bolts securing the mainshaft and countershaft speed sensors from the transmission housing.
3.
Remove the mainshaft and countershaft speed sensors.
4.
Install the mainshaft and countershaft speed sensors in the reverse order of the removal.
