Cruise Control: Testing and Inspection

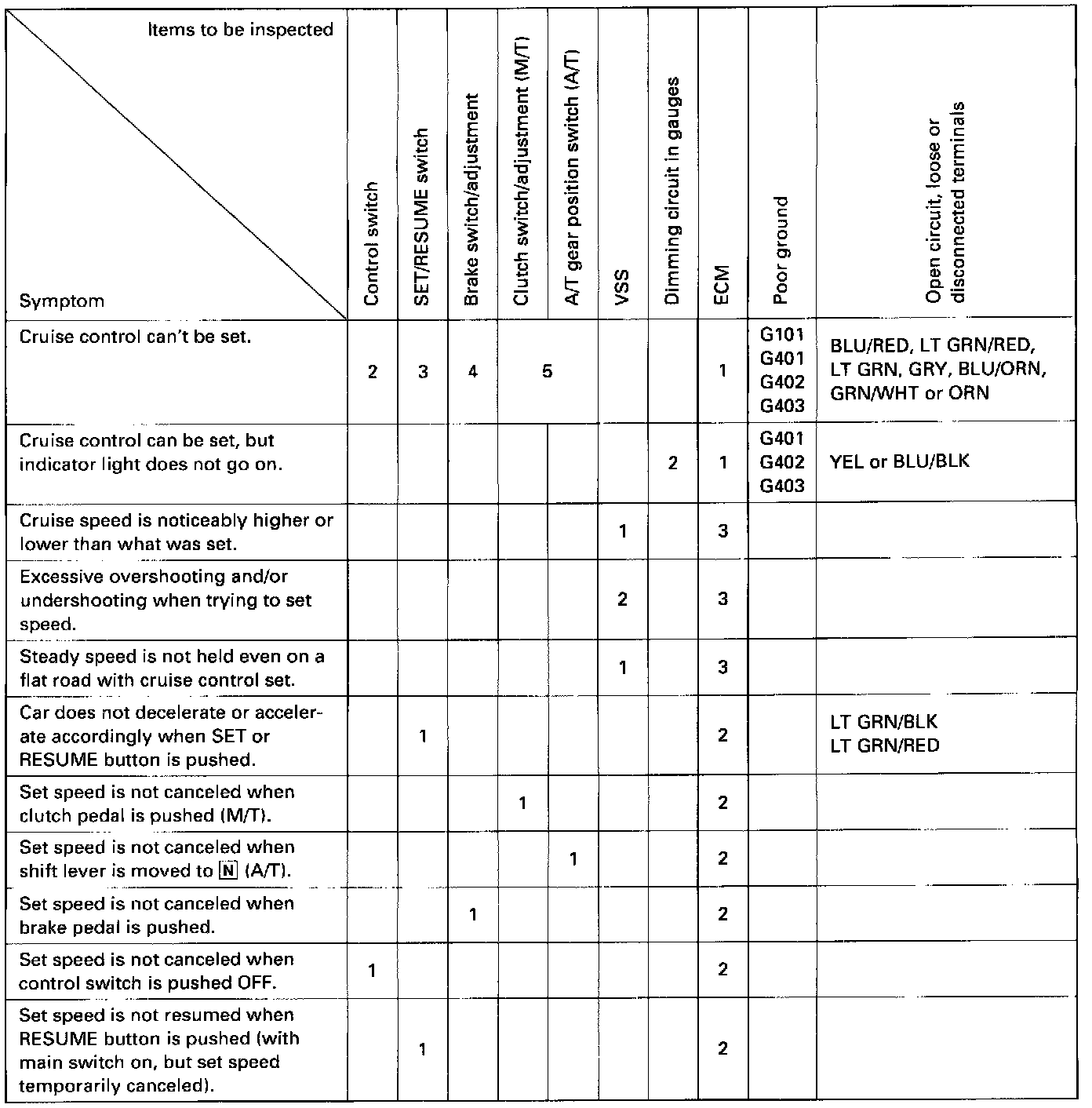

Cruise Control-Troubleshooting:
NOTE: ^
The numbers in the table show the troubleshooting sequence.
^
Before troubleshooting:
-
Check the No. 5
(15 A) fuse in the under-dash fuse box, and the No. 29
(50 A) and No. 45
(20 A) fuses in the underhood fuse/relay box.
-
Check that the horns sound.
-
Make sure that the headlights go
OFF.
