Switch Test
1.
Remove the dashboard lower cover (see Switch replacement).
2.
If necessary, remove the dashboard lower pad.
3.

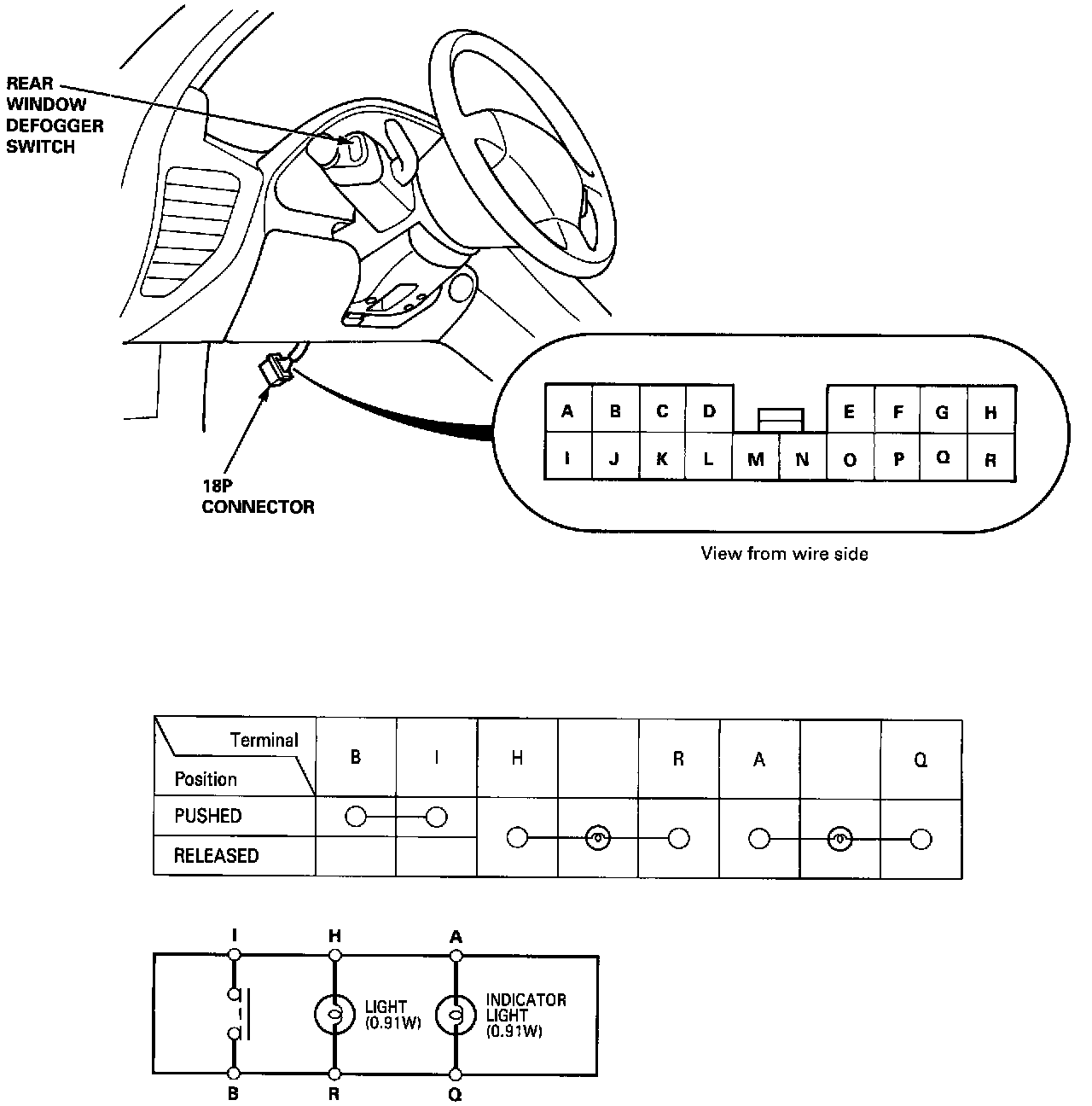

Disconnect the 18P connector from the floor wire harness.
Switch Test:
4.
Check for continuity between the terminals in each switch position according to the table.
