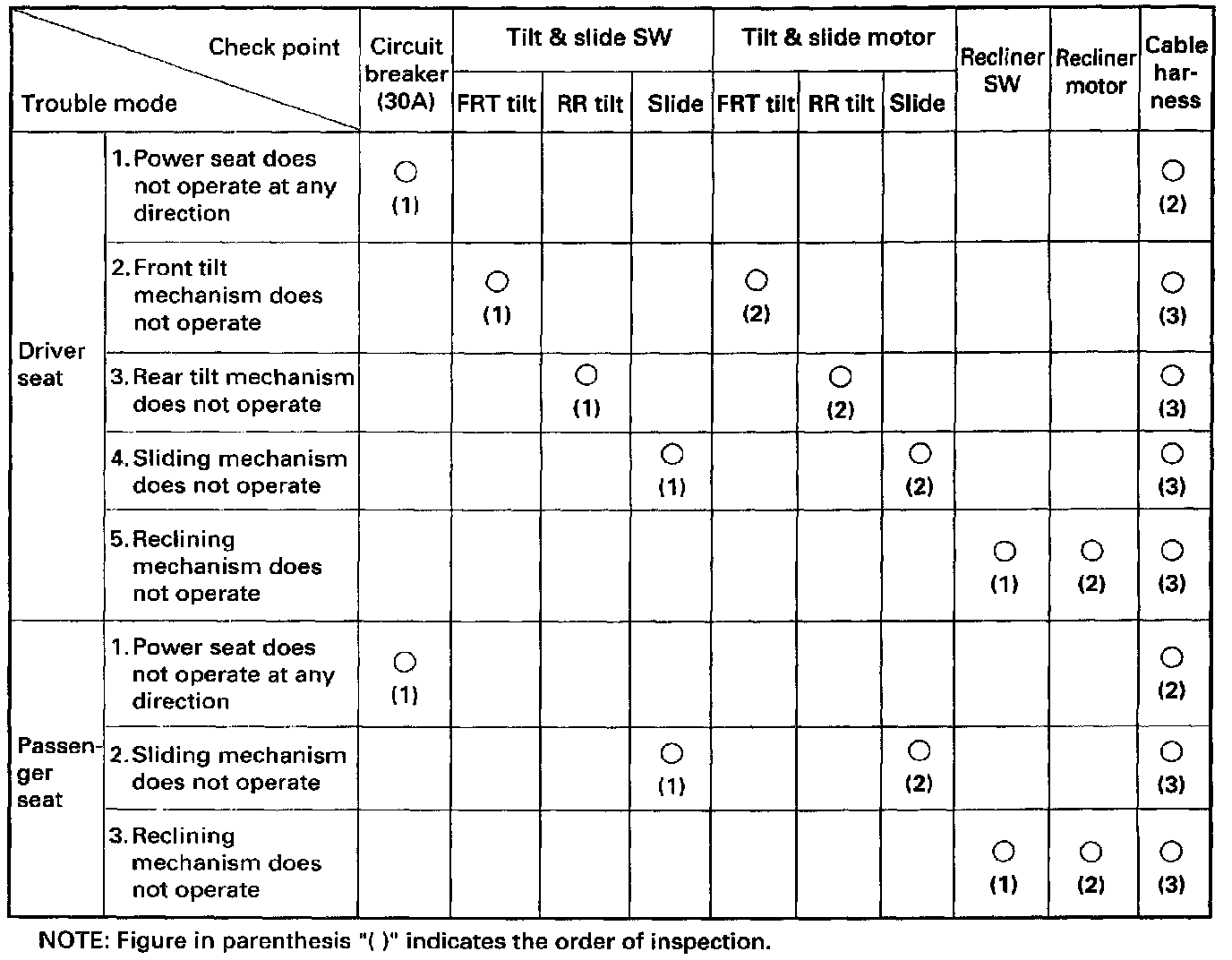

Seats: Testing and Inspection





DRIVER SEAT

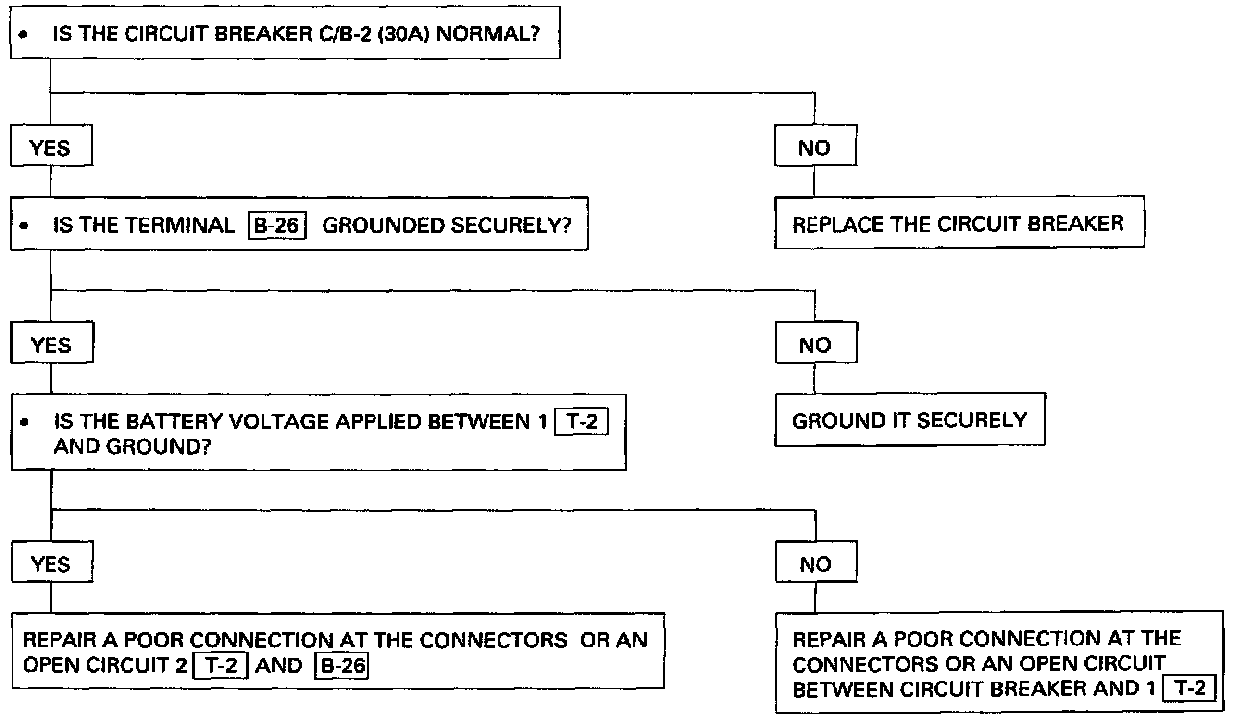

1. POWER SEAT DOES NOT OPERATE AT ANY DIRECTION

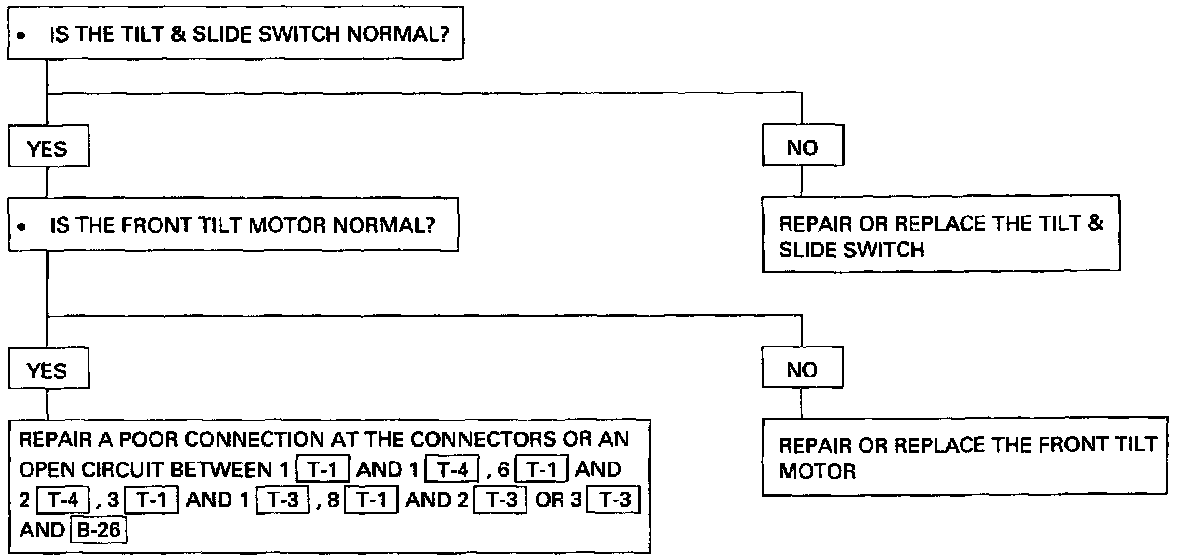

2. FRONT TILT MECHANISM DOES NOT OPERATE




3. REAR TILT MECHANISM DOES NOT OPERATE

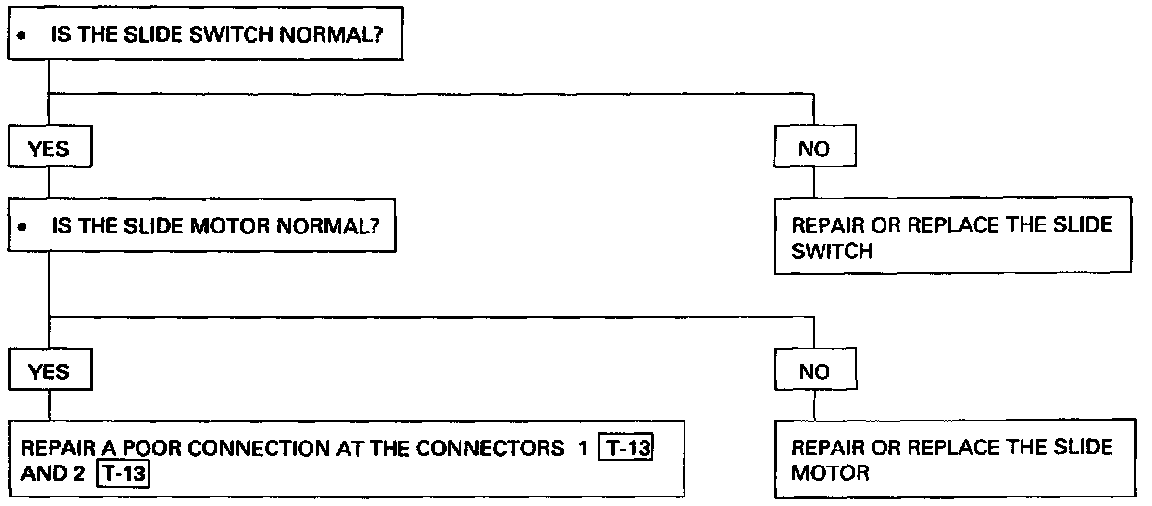

4. SLIDING MECHANISM DOES NOT OPERATE

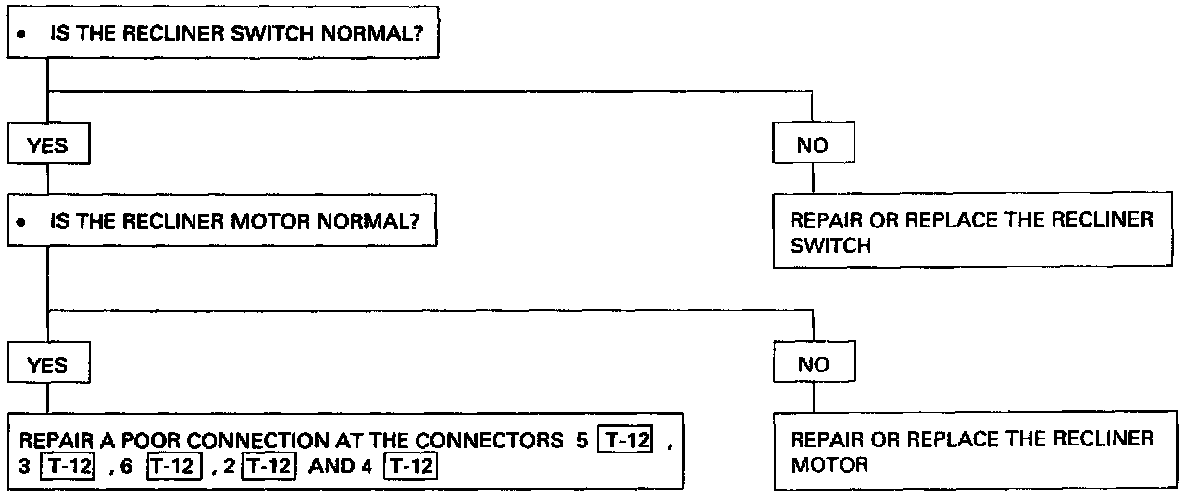

5. RECLINING MECHANISM DOES NOT OPERATE

PASSENGER SEAT

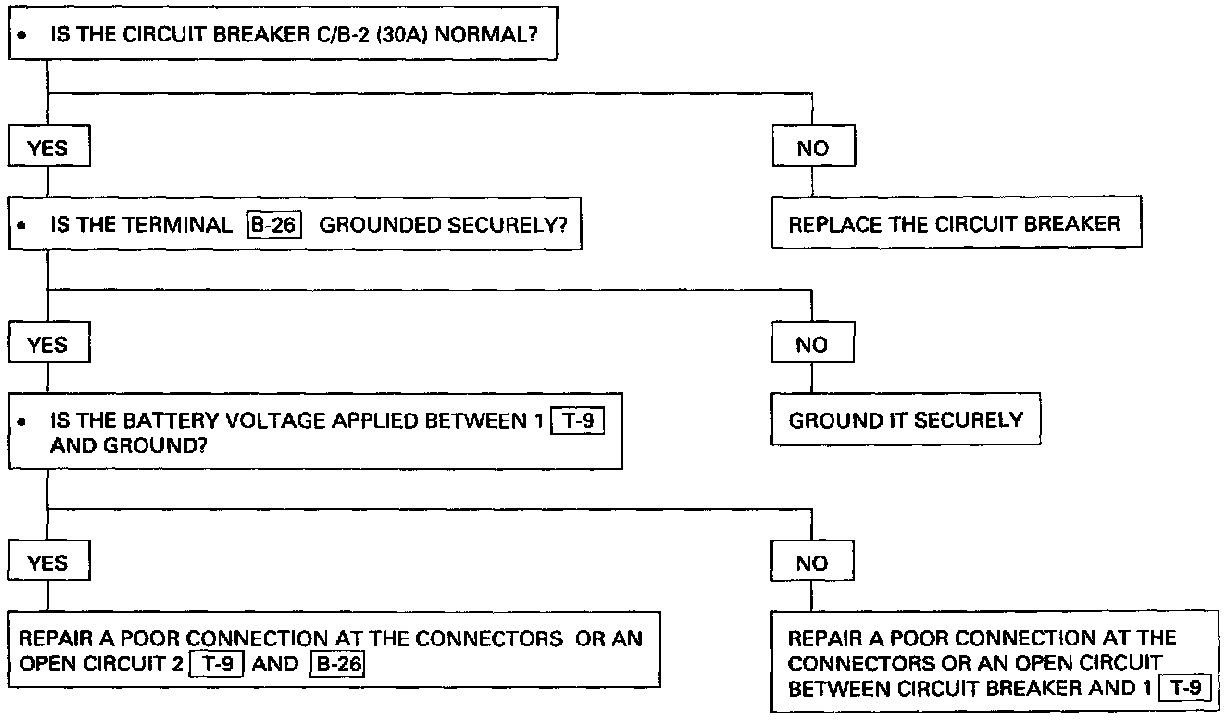

1. POWER SEAT DOES NOT OPERATE AT ANY DIRECTION

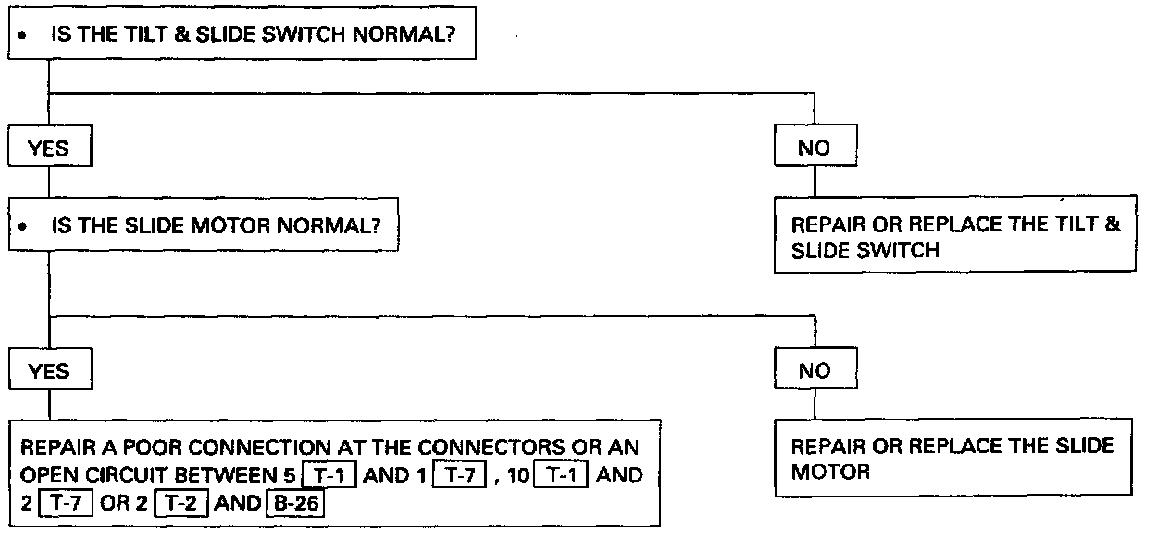

2. SLIDING MECHANISM DOES NOT OPERATE

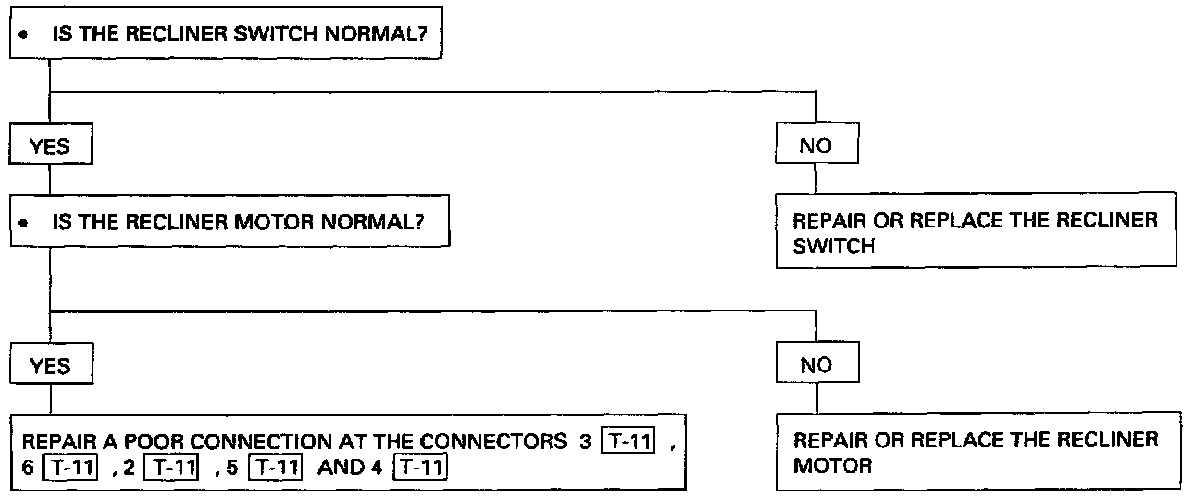

3. RECLINING MECHANISM DOES NOT OPERATE
