Brake Switch (Cruise Control): Testing and Inspection
1.
Check the installation condition of the brake switch.
^
Refer to the brake switch of "STOP LIGHT AND REAR DEFOGGER" system.
2.

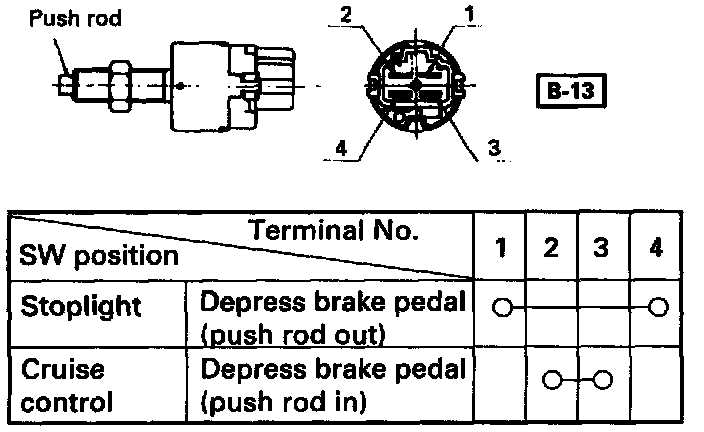

Check the continuity between the switch connector terminals.
3.
Check to see if the push rod operates smoothly.
Adjust repair or replace the brake switch when the result of inspection is found abnormal.
