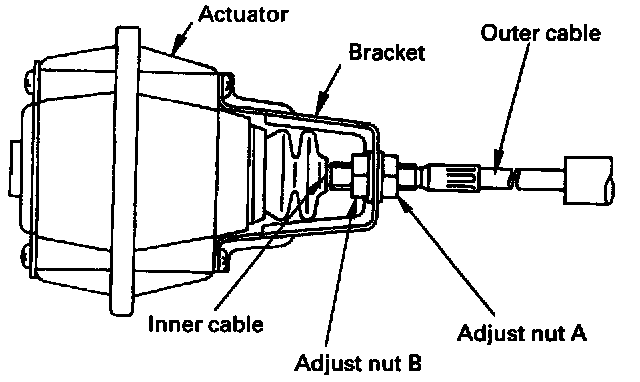

Cruise Control Servo Cable: Adjustments
1.
Fix the accelerator pedal at the position where it has been fully returned (with the throttle valve fully closed).
2.
Loosen the adjust nuts A and B.
3.
With the outer cable pulled to the accelerator pedal side (in the state where the inner cable has no play), tighten the adjust nut A by hand until it hits the bracket.
4.
Tighten the adjust nut B to lock it.
