Cruise Control Servo: Service and Repair

Preparation: Disconnect the battery ground cable.

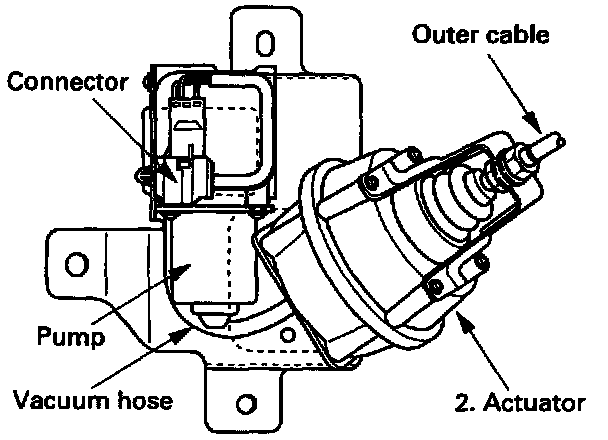

1. Pump
^ Disconnect the connector.
^ Disconnect the vacuum hose.
^ Remove the pump fixing screws.
2. Actuator
^ Disconnect the inner cables of the actuator at the accelerator pedal.
^ Remove the outer cable clips.
^ Remove the actuator fixing screws.

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point.
1. Take care not to bend the cable excessively.
