Cruise Control Servo: Testing and Inspection

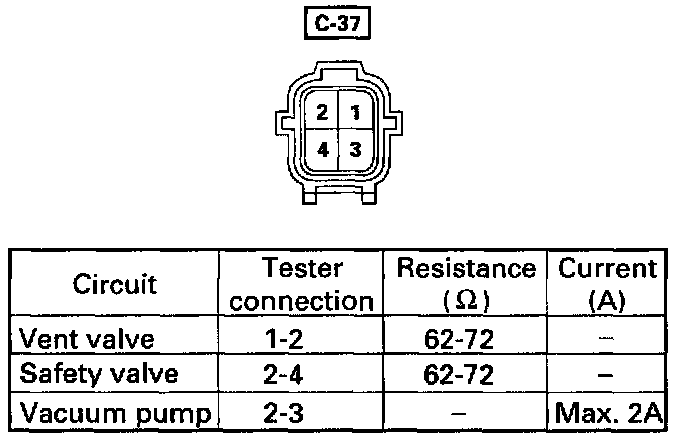

Check the resistance and current values between the pump & VSV connector terminals.

Repair or replace the pump & VSV when the result of inspection is found abnormal.

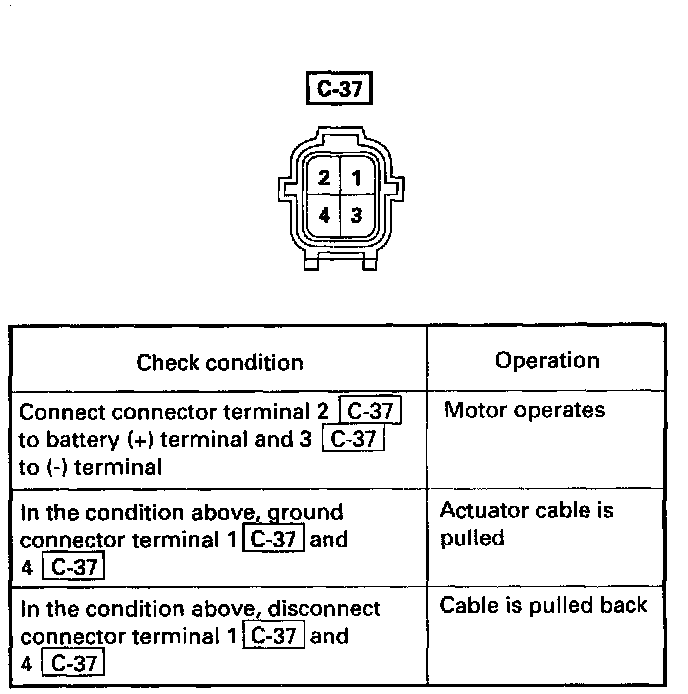

Inspection of operation
Apply the battery voltage between the pump & VSV connector terminals, and check to see if the motor and actuator operate smoothly.

Repair or replace the pump & VSV when the result of inspection is found abnormal.
