Cruise Control Module: Testing and Inspection

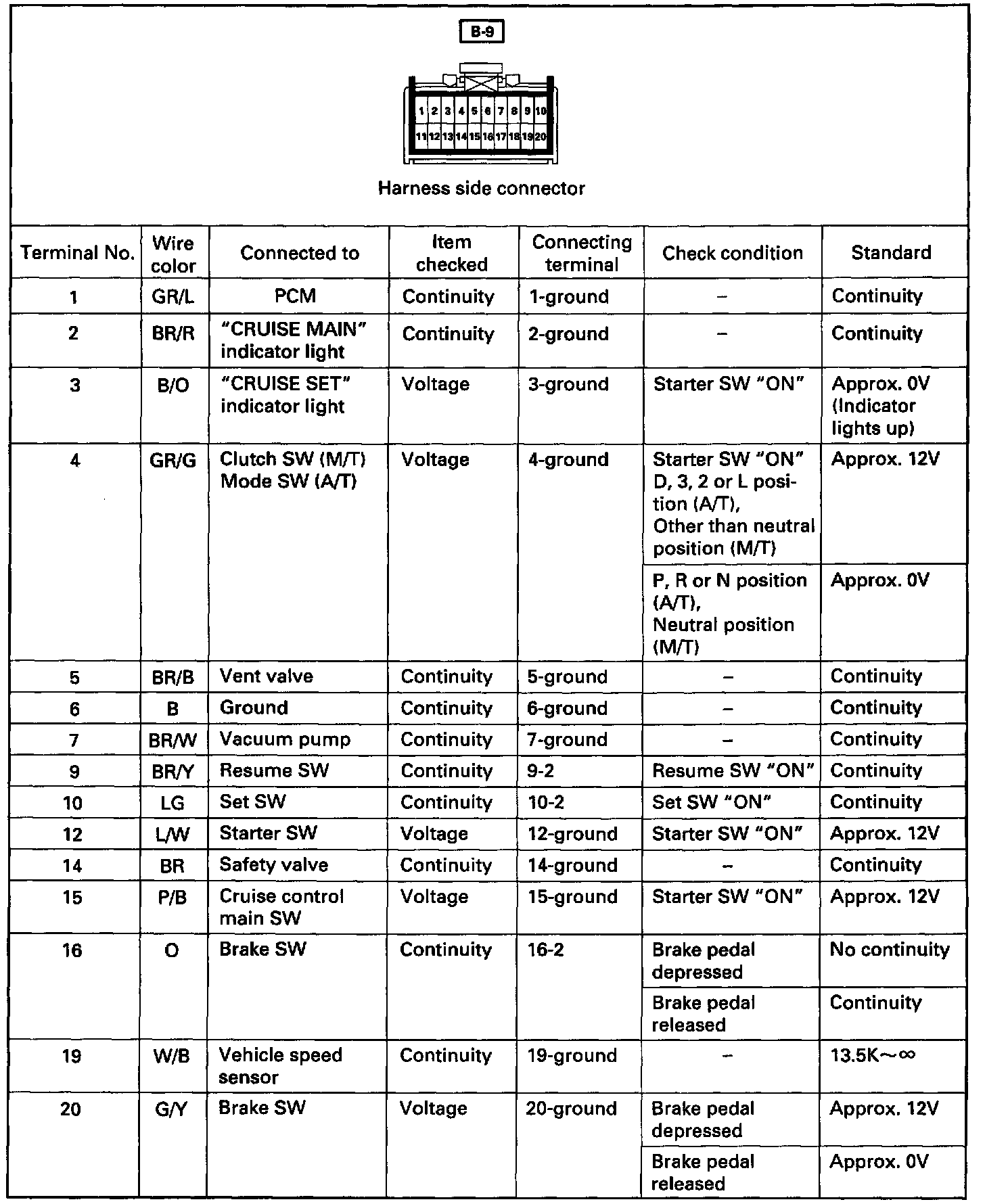

Disconnect the
control unit connector, and check the voltage and the continuity between the harness side connector terminal switch the starter switch and the cruise control main switch
ON. Replace the cruise control unit when the result of inspection is found abnormal.
