Chart 2

Chart 2:

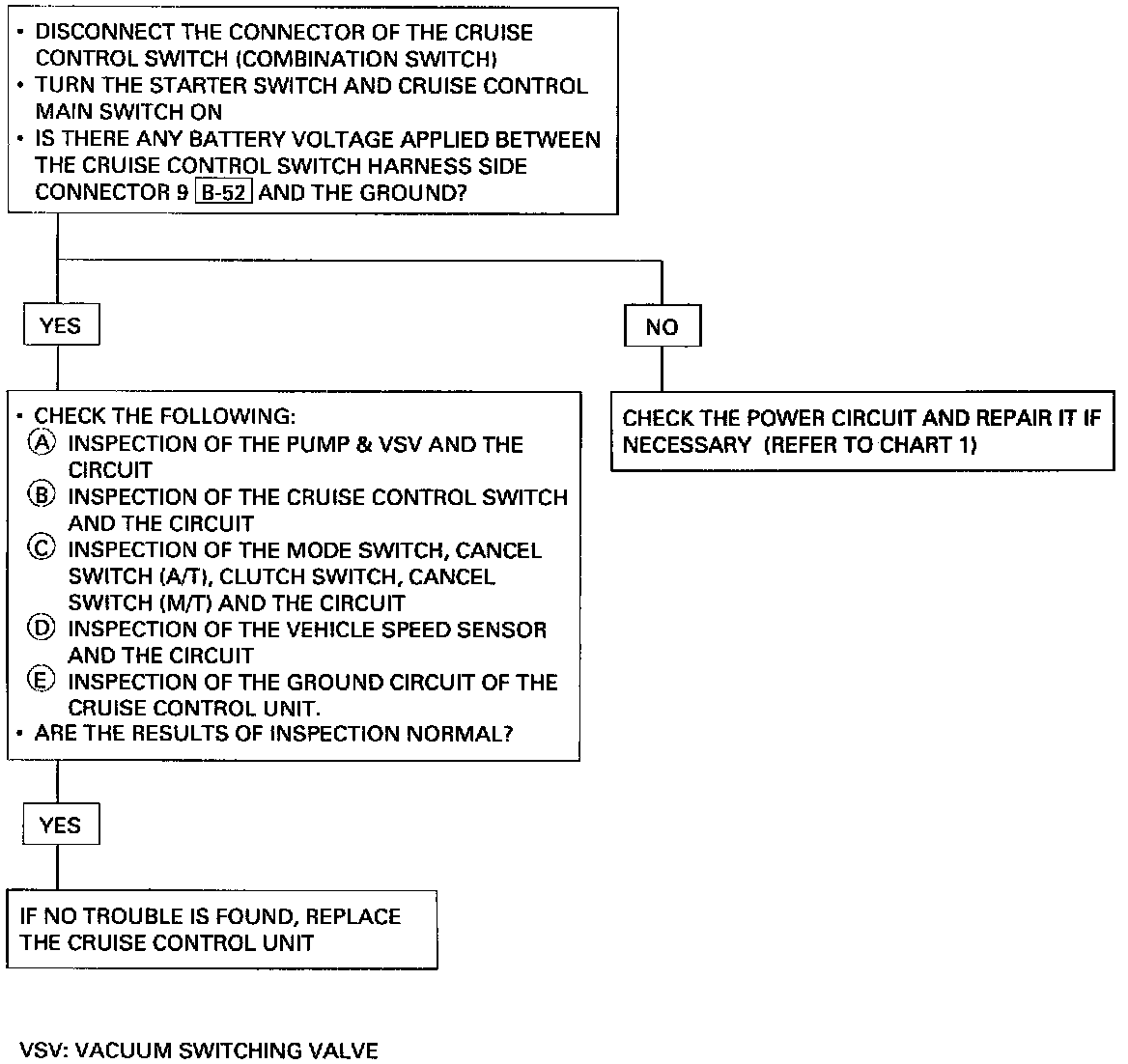

Cruise Speed Cannot Be Set

Part 1 Of 2:

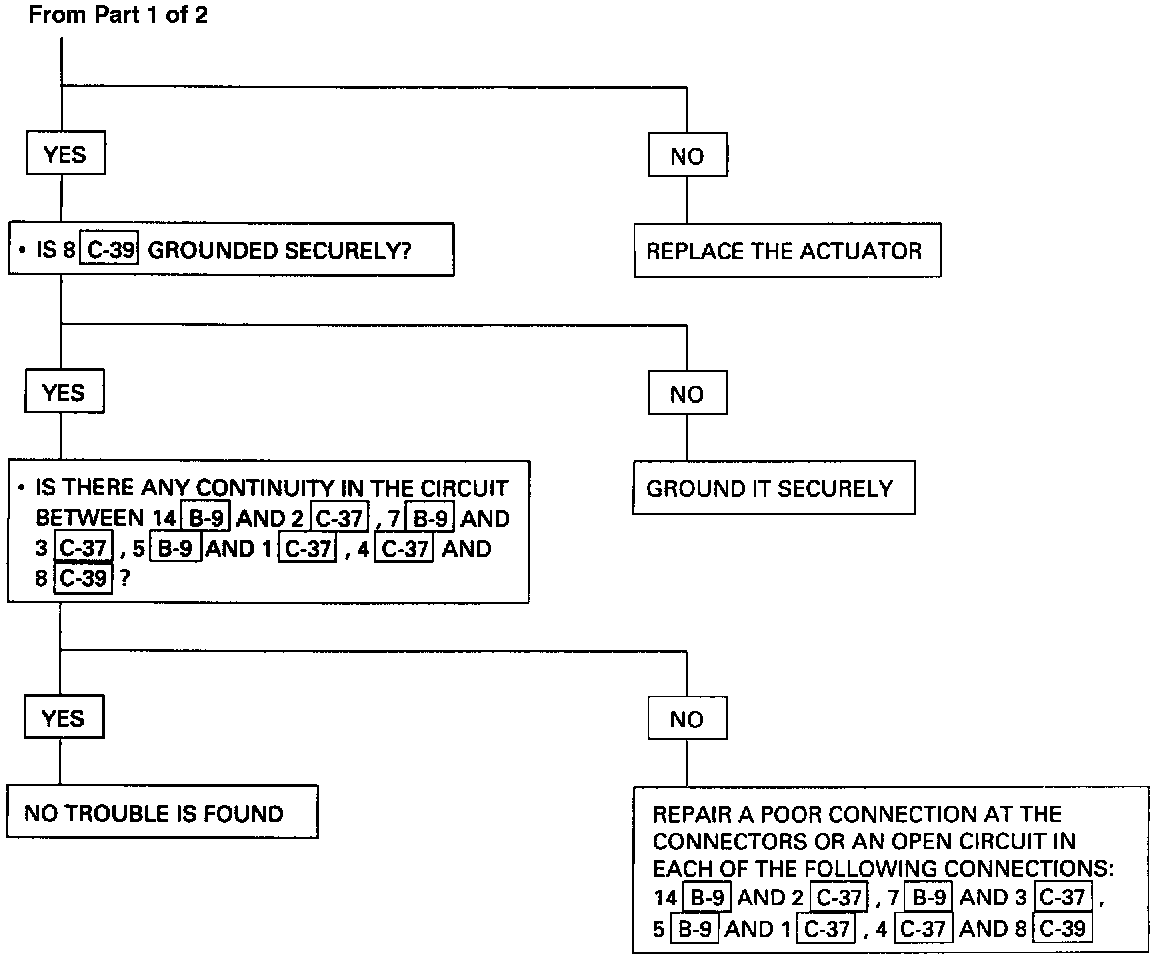

Part 2 Of 2:




A. Inspection Of The Pump And VSV, And The Circuit

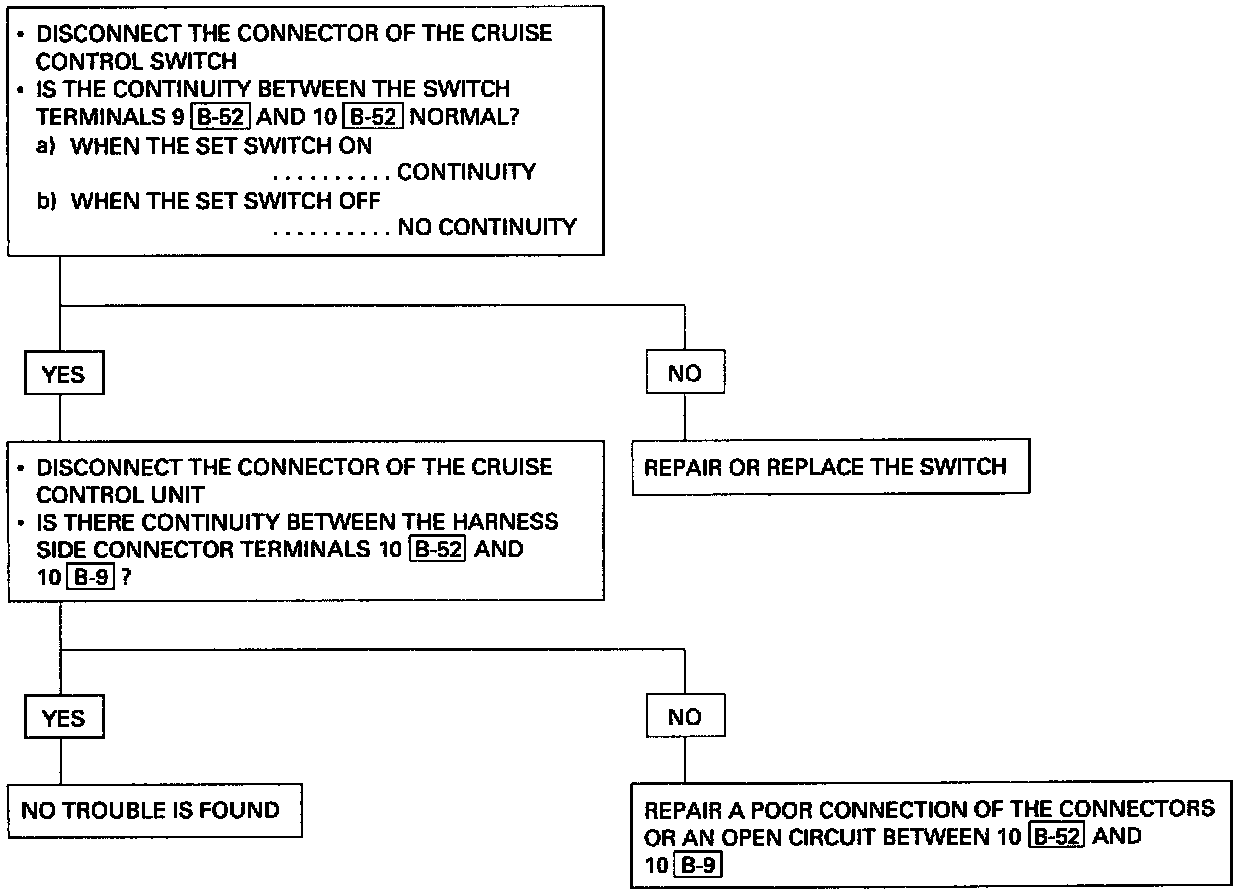

B. Inspection Of The Cruise Control SW And The Circuit

Part 1 Of 2:

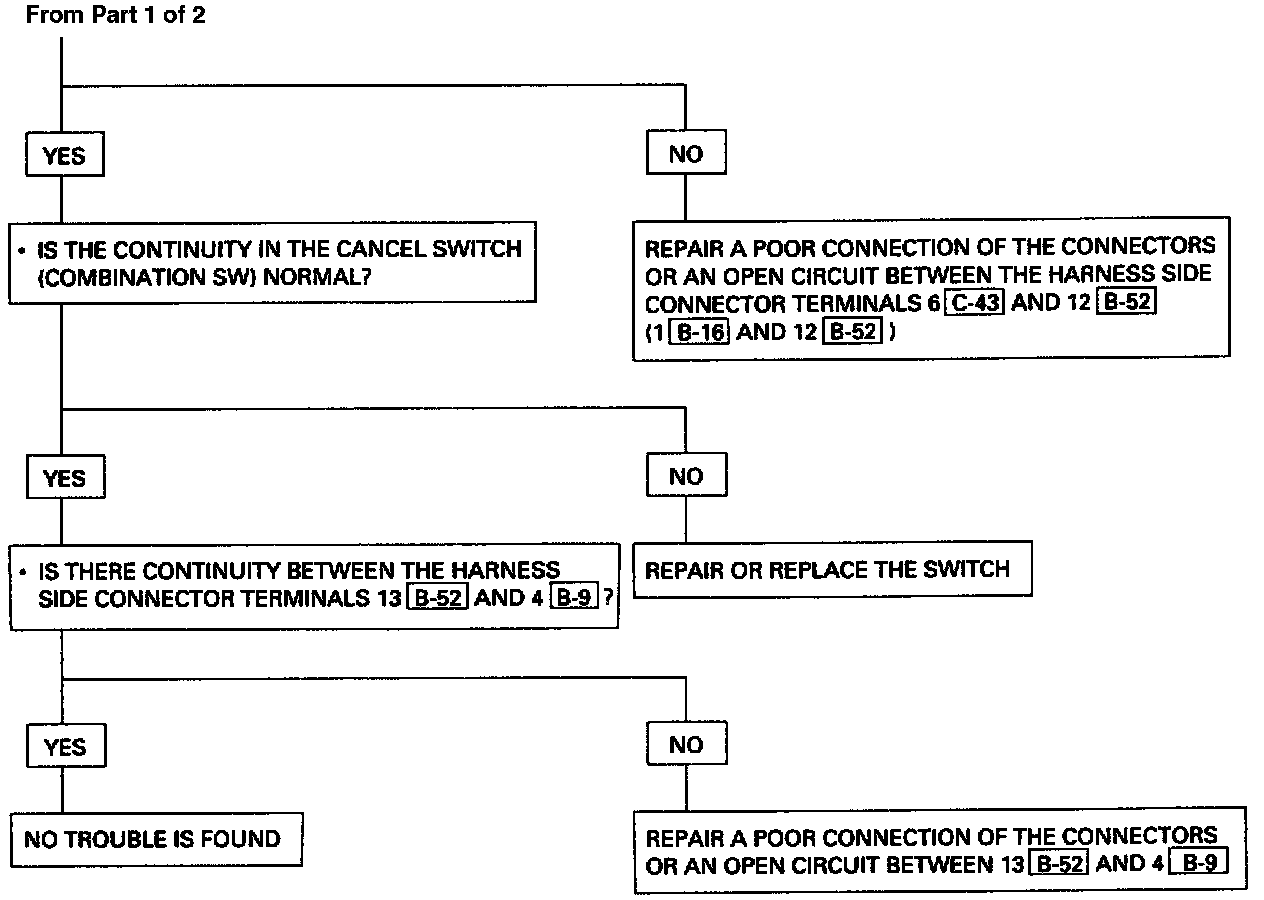

Part 2 Of 2:

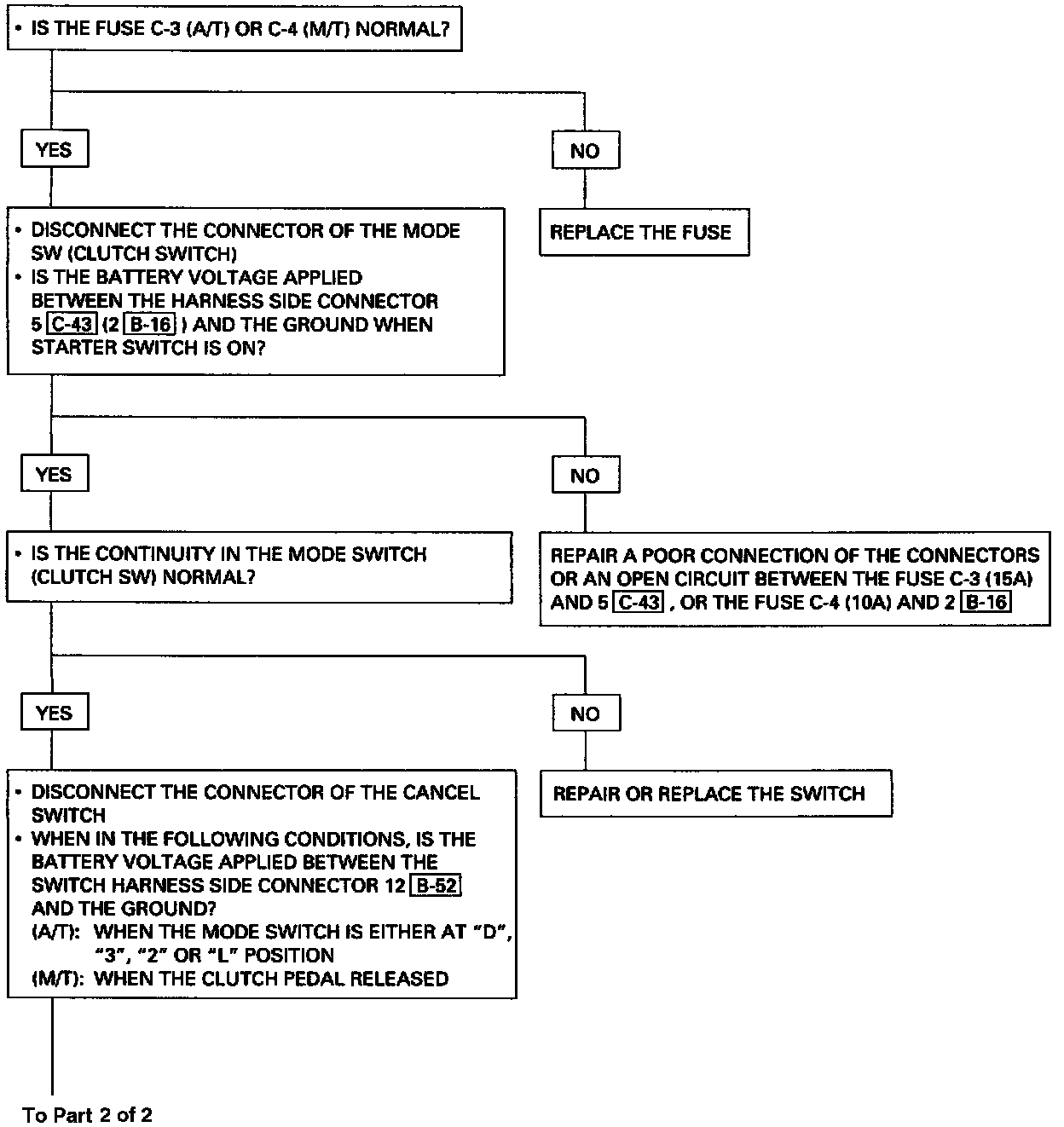

C. Inspection Of The Mode Switch (A/T), Cancel Switch (A/T), Clutch Switch (M/T), Cancel Switch (M/T) And The Circuit

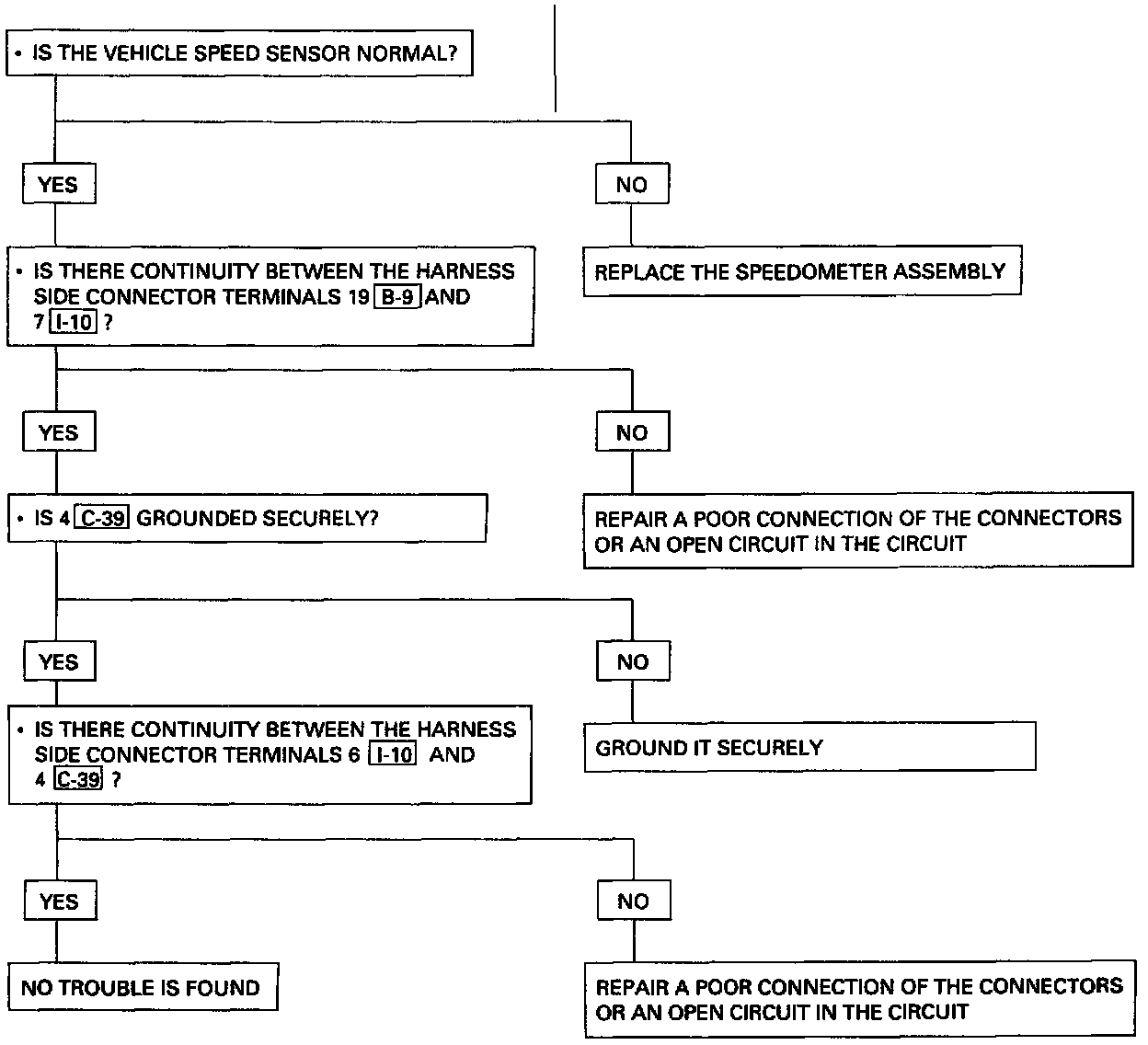

D. Inspection Of The Vehicle Speed Sensor And The Circuit




E. Inspection Of The Ground Circuit Of The Cruise Control Unit
