Installation

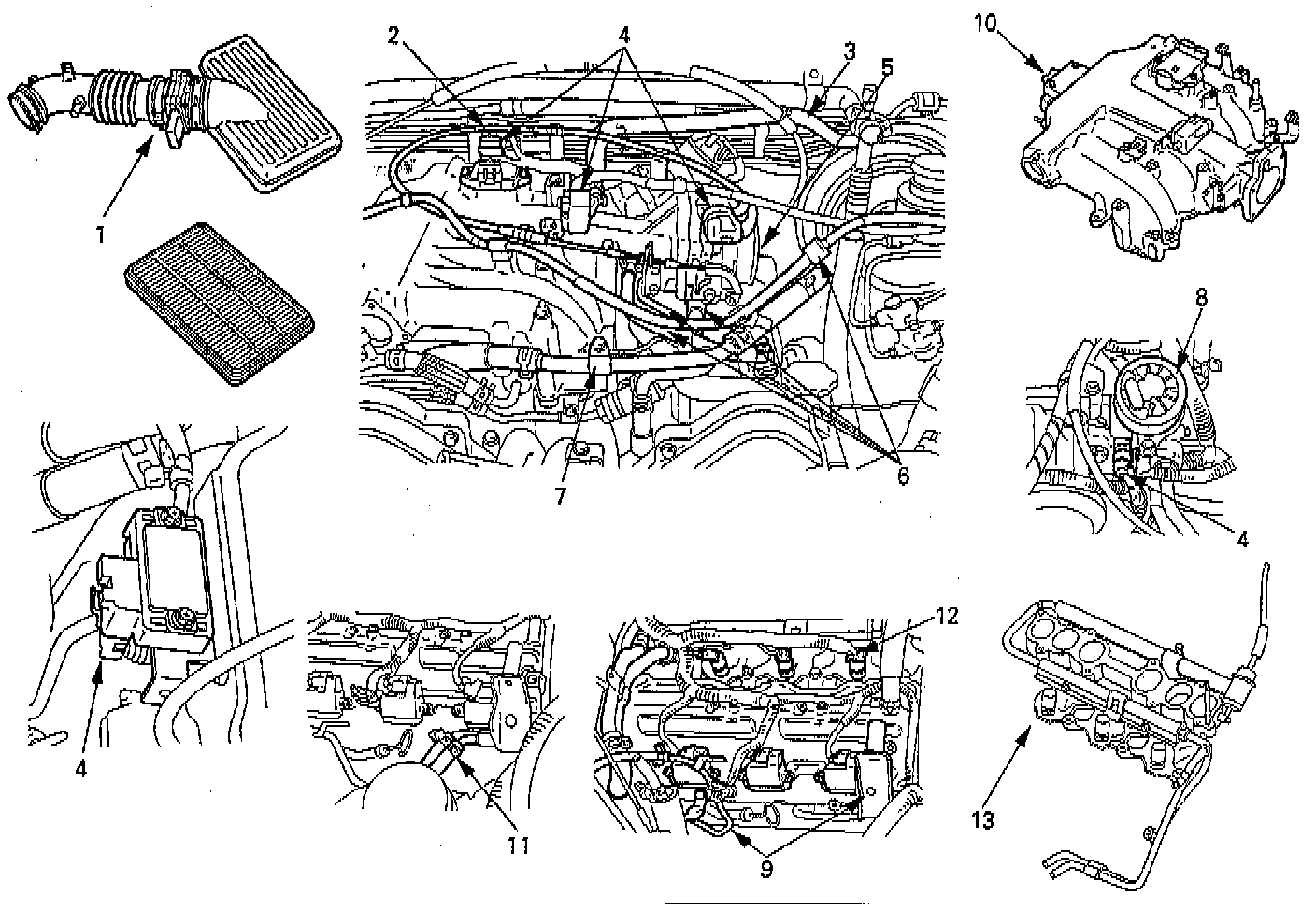

1. Intake manifold [13]
- Tighten bolts and nuts to:
- Bolts 24 Nm (17 ft. lbs.)
- Nuts 24 Nm (17 ft. lbs.)
2. Connectors [12]
- Connect each connector.
3. Fuel hoses [11]
- Connect the hoses securely and install bolts on the head cover.
4. Common chamber [10]
- Tighten bolts and nuts to:
- Bolts 24 Nm (17 ft. lbs.)
- Nuts 24 Nm (17 ft. lbs.)
5. Brackets [9]
- Tighten bolts to 21 Nm (15 ft. lbs.).
6. Exhaust gas recirculation valve assembly [8]
- Tighten bolts to 9 Nm (78 inch lbs.).
7. Ventilating hose bracket [7]
- Tighten bolts to 24 Nm (17 ft. lbs.).
8. Vacuum hoses [6]
- Connect vacuum hoses on canister Electronic Vacuum Sensing Valve (EVSV) and positive crankcase ventilation hose, fuel pressure control valve hose, shift on the fly hose.
9. Throttle body [5]
- Tighten bolts to 22 Nm (16 ft. lbs.).
10. Connectors [4]
- Connect each connector without fail.
11. Vacuum booster hose [3]
12. Accelerator Pedal cable [2]





- Accelerator pedal cable adjustment:
a. Loosen the adjusting nut and lock nut.
b. Pull outer cable while fully closing the throttle valve.
c. Tighten adjusting nut and lock nut temporarily.
d. Loosen adjusting nut by three turns and tighten lock nut. Then, manually operating the throttle valve, make sure that the valve lever returns up to the stopper screw. If it does not reach the stopper screw, repeat from step a.
13. Air cleaner duct assembly [1]
