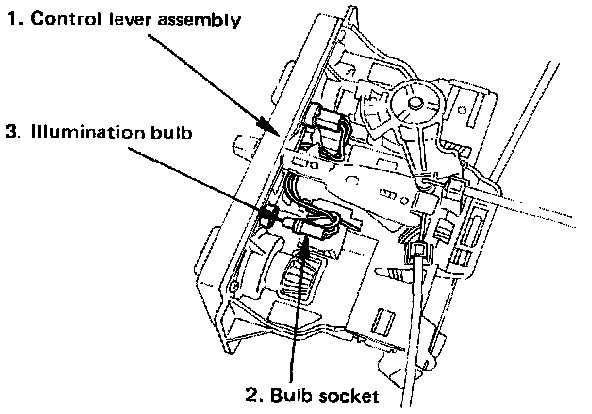

Control Unit Bulb Replacement
Preparation: Disconnect the battery ground cable
1.
Control lever assembly
^
Refer to "CONTROL LEVER ASSEMBLY" removal procedure.
2.
Bulb socket
^
Pull out the socket from the panel by turning it counterclockwise.
3.
Illumination bulb
^
Pull the illumination bulb from socket.
INSTALLATIONTo install, follow the removal steps in the reverse order.
