Map Light: Service and Repair
REMOVALPreparation: Disconnect the battery ground cable.
1.

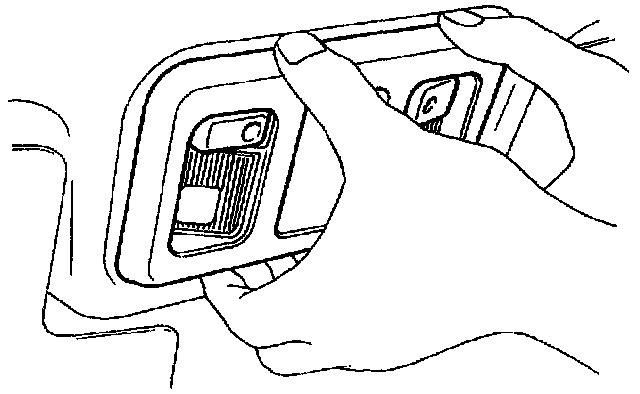

Map light switch
^
Pull the map light body downward to release the lock.
^
Disconnect the connectors of the
map light and the sun roof switch.
2.
Socket/bulb
^
Turn the socket counterclockwise to remove it.
3.
Bulb
^
Pull out the bulb from the socket.
INSTALLATIONTo install, follow the removal steps in the reverse order.
