Maximum Steering Angle

The maximum steering angle of the front wheels can be adjusted with the stopper bolts under the frame side members.
1. Position each front wheel on the turning radius gauge in a straight-ahead position.
2. Set the parking brake firmly.
3. Adjust the inside wheel angle of each side with the stopper bolts.

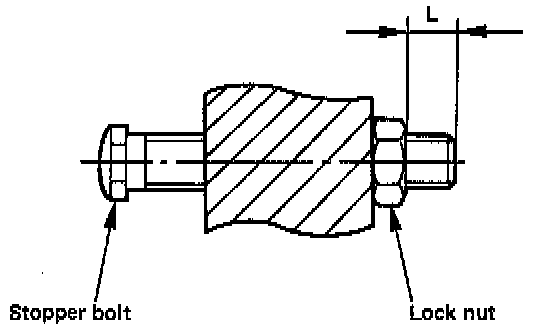

NOTE: The maximum protruding length (L) of stopper bolt from the lock nut should be 10 mm or less.

4. Similarly adjust the inside wheel angle of the other side with stopper bolt.

NOTE: Maximum steering angles should be set after adjusting front wheel alignment.

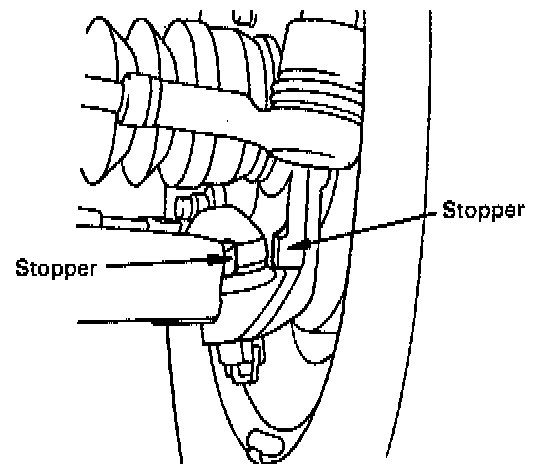

5. If the stopper between the lower link end and the steering knuckle comes ahead of the stopper bolt, adjust the stopper bolt so that inner stopper bolt touches the drop arm (relay lever).

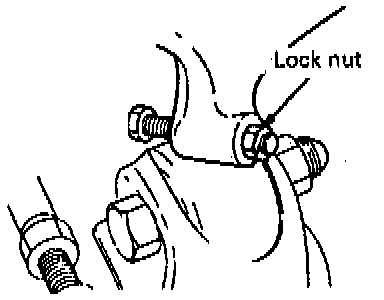

6. Tighten the lock nut to the specified torque 23 Nm (17 ft. lbs.).
