Toe-In

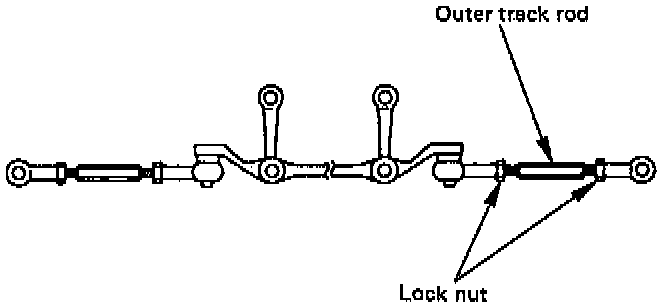

To adjust the toe-in angle, loosen the lock nuts on the outer track rods and turn the outer track rods. Turn both rods the same amount, to keep the steering wheel centered. Tighten the lock nut to the specified torque 118 Nm (87 ft. lbs.).
