Sunroof / Moonroof Module: Service and Repair
REMOVALPreparation: Disconnect the battery ground cable.

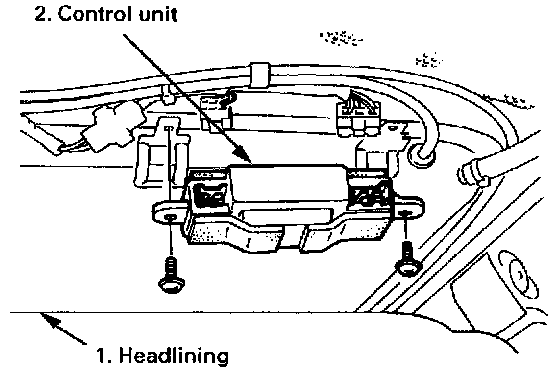

1.
Headlining
^
Refer to "BODY" system for "HEADLINING" removal steps.
2.
Control unit ^
Disconnect two connectors.
^
Remove two screws.
INSTALLATIONTo install, follow the removal steps in the reverse order.
