Piston Ring, Engine

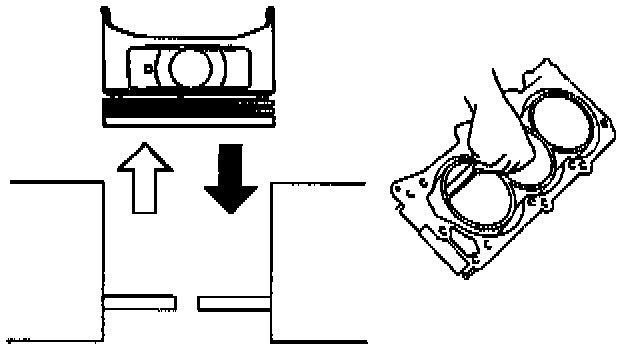

Compression Ring End Gap:
1st ring
Standard
0.350 mm - 0.470 mm (0.0138 inch - 0.0185 inch)
Limit
1.5 mm (0.0590 inch)
2nd ring
Standard
0.450 mm - 0.600 mm (0.0177 inch - 0.0236 inch)
Limit
1.5 mm (0.0590 inch)
Oil Ring End Gap:
Standard
0.150 mm - 0.450 mm (0.0059 inch - 0.0177 inch)
Limit
1.5 mm (0.0590 inch)
