Water Pump
Pump Speed: 5000 +/- 50 rpm

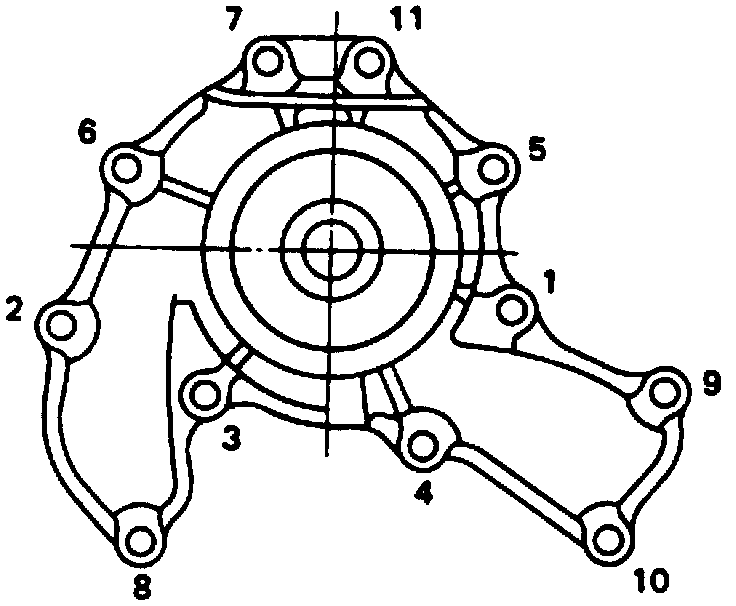

Fig. 69 Water Pump Tightening Sequence:

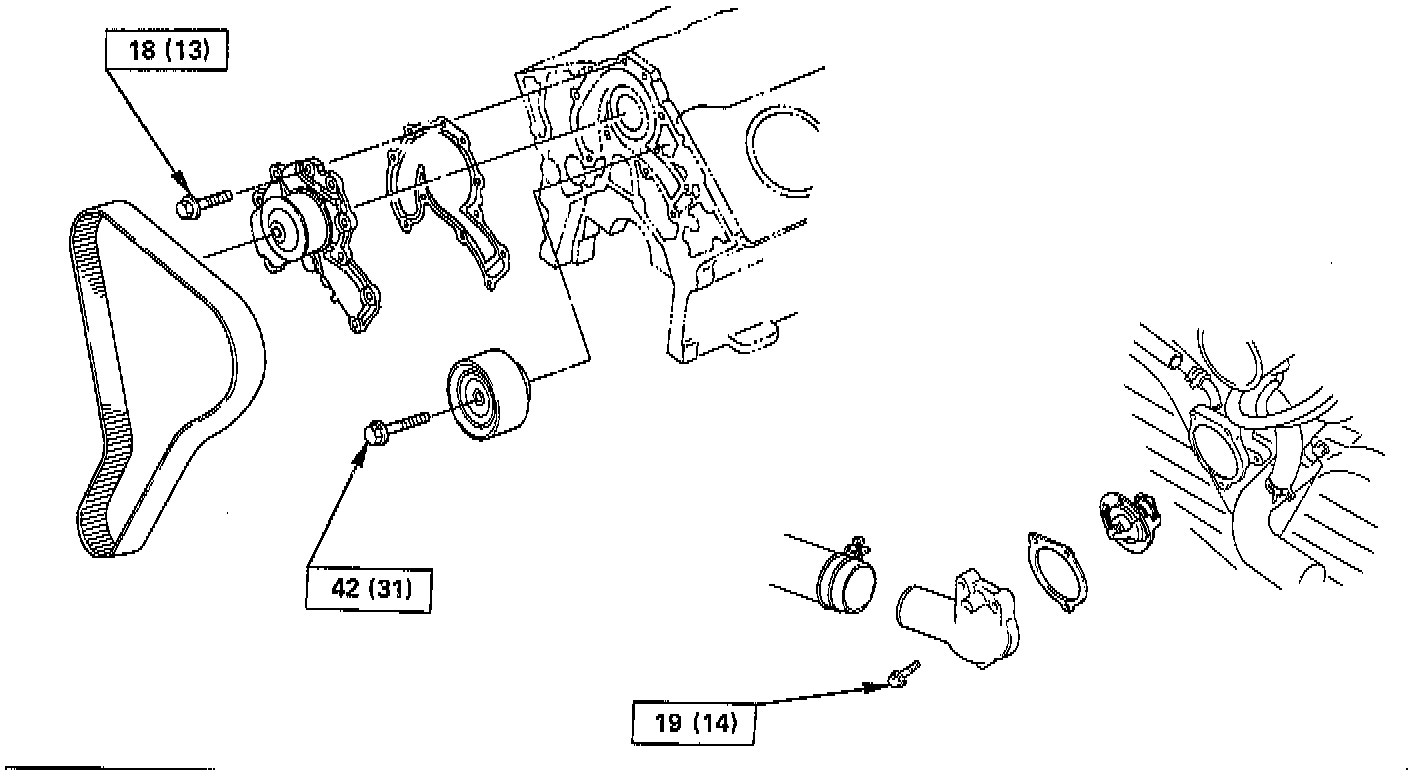

1.
Gasket [4]
-
Clean the mating surface of packing before installation.
2.
Water pump assembly [3]
-
Install coolant pump assembly and tighten bolts in order to
18 Nm (13 ft. lbs).
