Reassembly
To reassemble, follow the disassembly steps in the reverse order, noting the following points:
1.
Front cover assembly
^

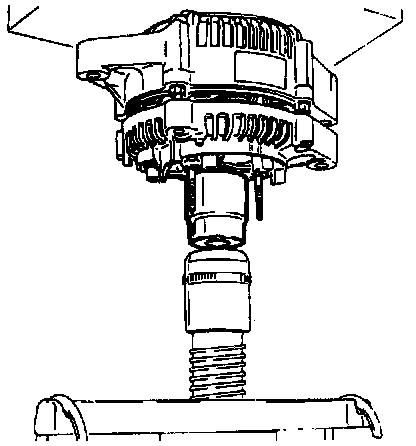

Using a press with a socket wrench attached, reassemble
rotor and rear end cover assembly in the front cover.
2.
Pulley nut
1.
Install pulley on the
rotor.
2.
Cover vise with copper plates, clamp pulley to the vise, and tighten nut to the specified torque.
Torque
N.m (lb.ft) = 111 (82)
