Clutch Switch: Testing and Inspection
When the clutch pedal is depressed, the clutch start switch is turned on to form a circuit to activate the starter.

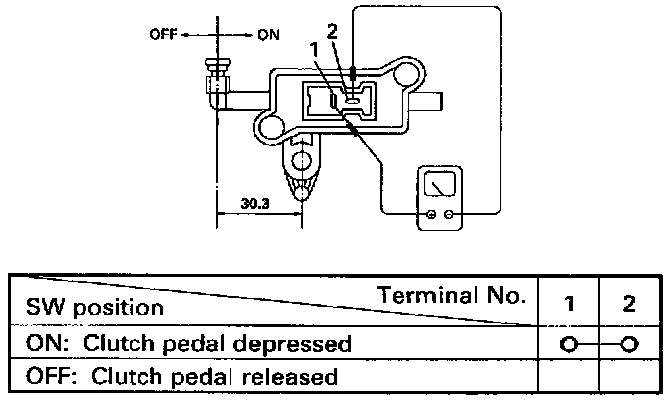

Check the continuity between the clutch start switch terminals.
Replace the switch when the result of inspection is found abnormal.
