Ignition Switch: Service and Repair

Preparation: Disconnect the battery ground cable.

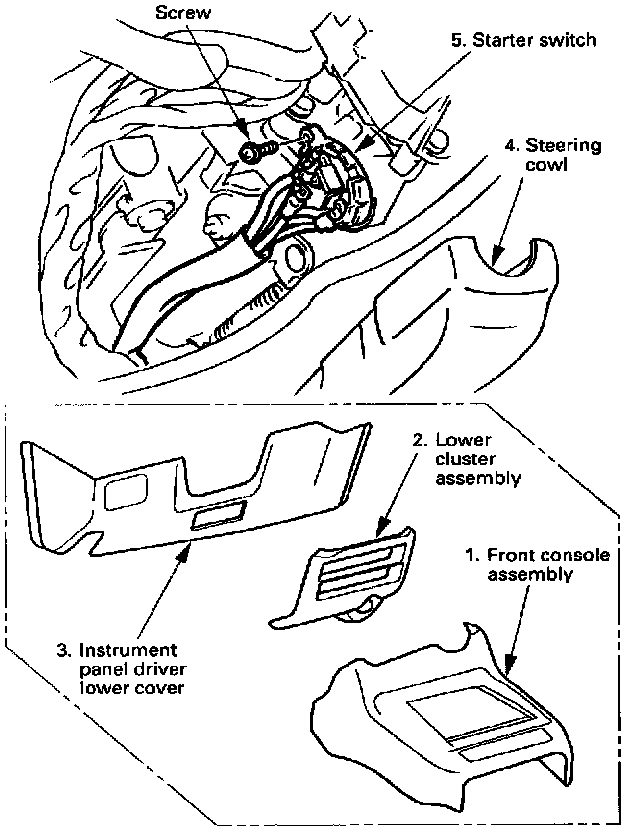

1. Front console assembly
^ Remove four screws.
^ Remove the transmission shift lever knob.
^ Remove the transfer shift lever knob.
^ Disconnect the seat heater switch connectors (If so equipped).
^ Disconnect the "POWER & WINTER" switch connectors (A/T only).
2. Lower cluster assembly
^ Remove three screws.
^ Disconnect the cigarette lighter connectors.
^ Remove the cigarette lighter illumination bulb socket.
^ Disconnect the ashtray illumination bulb connector.
3. Instrument panel driver lower cover
^ Remove the engine hood opener.
^ Remove three screws and clip.
^ Disconnect four fasteners.
4. Steering cowl
^ Remove seven screws.
5. Starter switch
^ Disconnect the connector.
^ Remove the screw.

INSTALLATION
To install, follow the removal steps in the reverse order noting the following point.

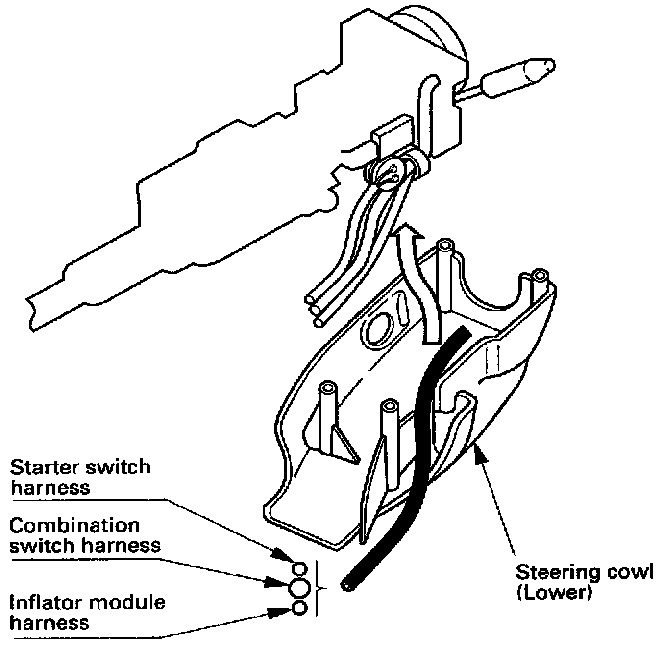

1. When installing the steering cowl, be sure to pass the harnesses through the route as shown in the illustration so that the starter switch, the combination switch and the inflator module harness will not get caught.
