Ignition Switch: Testing and Inspection

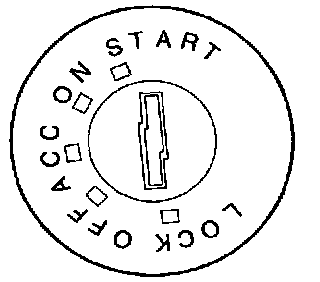

The starter switch positions are LOCK, OFF, ACC, ON and START. Turning the starter key to these positions provides a circuit for starting the engine, the operation of accessories, or stops the engine.

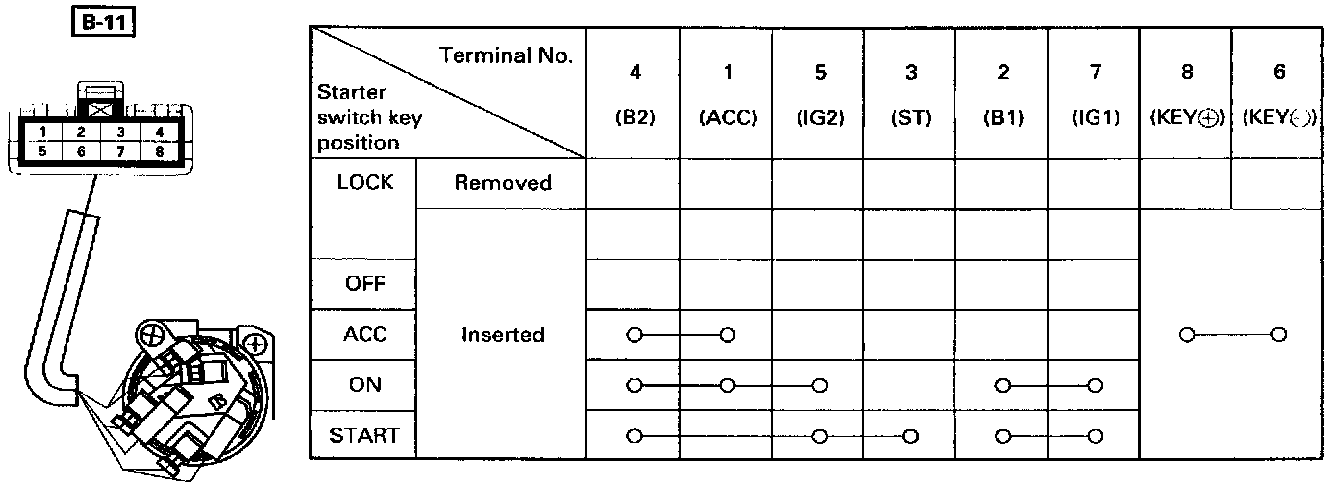

Check the continuity between the starter switch connector terminals.
Repair or replace the switch when the result of inspection is found abnormal.
