Starter Relay: Testing and Inspection

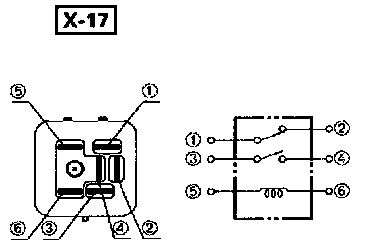

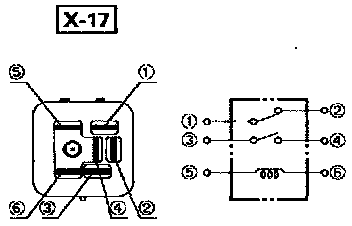

Check to see if there is any continuity between the relay terminals.
Replace the relay with a correct one when the result of inspection is found abnormal.
(1)-(2) ... Continuity
(3)-(4) ... No continuity
(When battery voltage is applied between (5)-(6))
(1)-(2) ... No continuity
(3)-(4) ... Continuity
