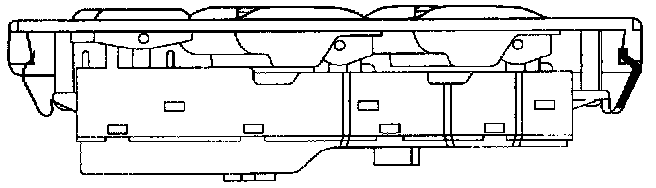

Driver Seat Side

This switch can be used to open and close all the windows on both front and rear sides.




Only the switch panel at the driver seat is provided with switches that operate the other windows. And, only the driver's window has a "one touch" mechanism for rolling the window all the way down automatically.

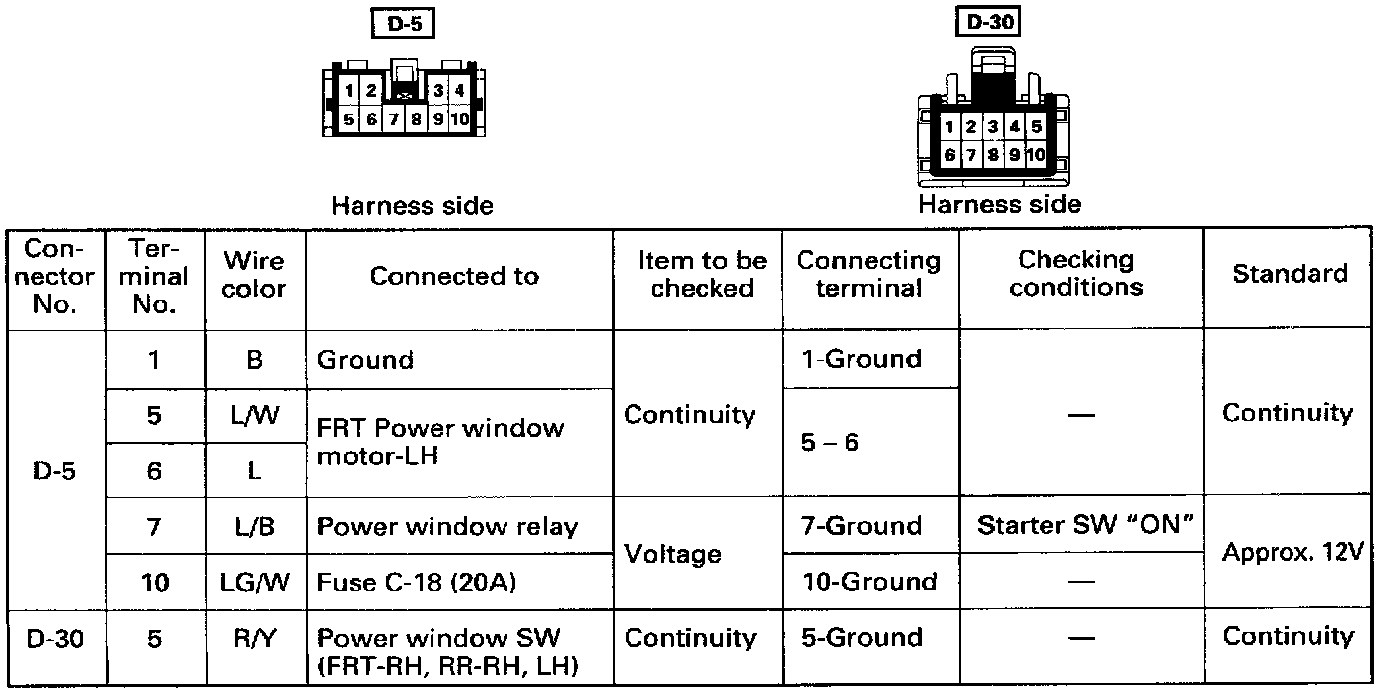

Circuit inspection of the driver seat side power window switch




Remove the connectors of the driver's power window switch, and check the voltage and continuity between the harness side connector terminals.
