Wiper and Washer Systems: Service and Repair

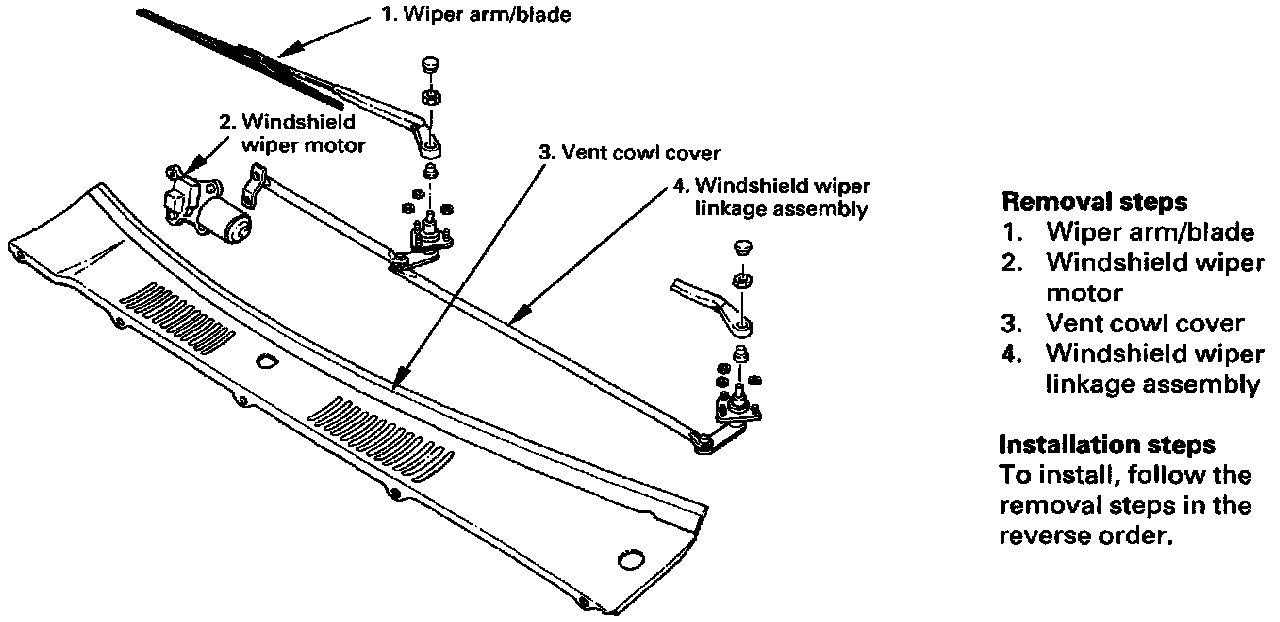

REMOVAL




Preparation: Disconnect the battery ground cable.

1. Wiper arm/blade
^ Refer to "WIPER ARM/BLADE" removal steps.
2. Windshield wiper motor
^ Refer to "WINDSHIELD WIPER MOTOR" removal steps.
3. Vent cowl cover
^ Remove the pivot assembly mounting nuts.
^ Remove the fixing screws.
4. Windshield wiper linkage assembly
^ Take out the linkage assembly from the opening of the cowl.

INSTALLATION
To install, follow the removal steps in the reverse order.
