Wiper/Washer Switch Test/Replacement
With the starter switch
ON, this switch controls wiper motor operation and speed.
Both the washer and the wiper motors operate while the washer switch is
ON position.

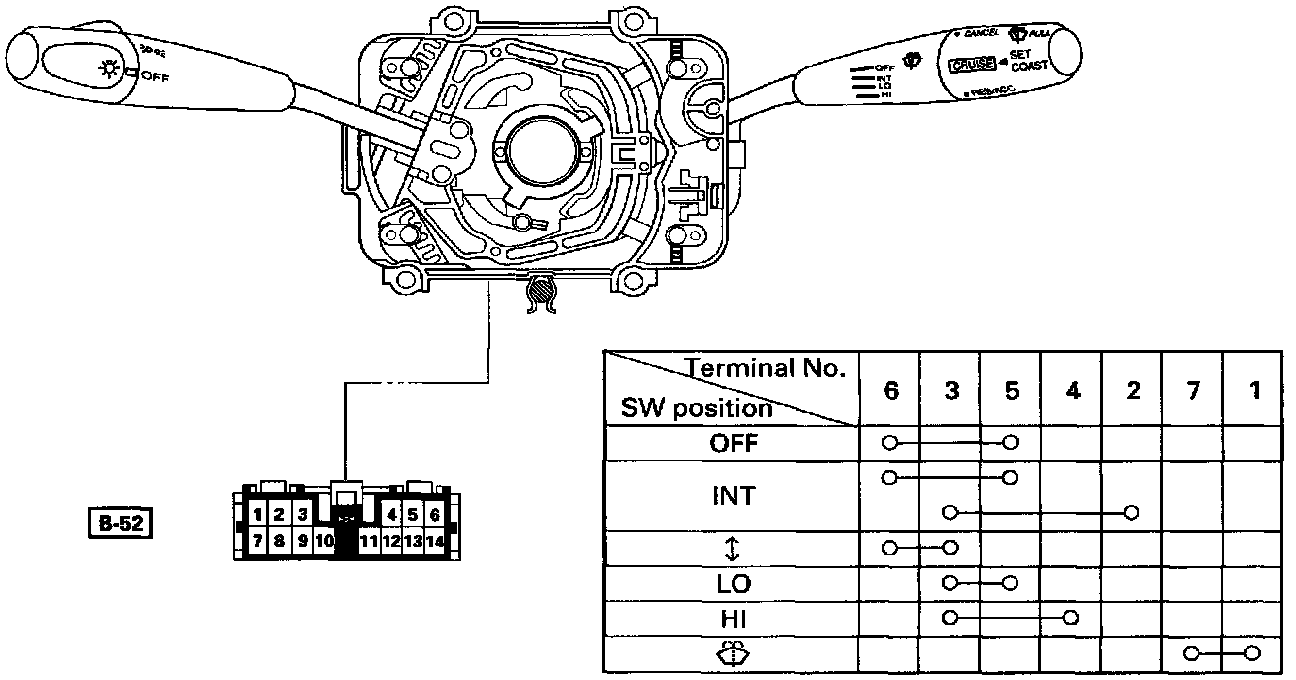

Check the continuity between the connector terminals of the switch.
Repair or replace the switch when the result of inspection is found abnormal.
