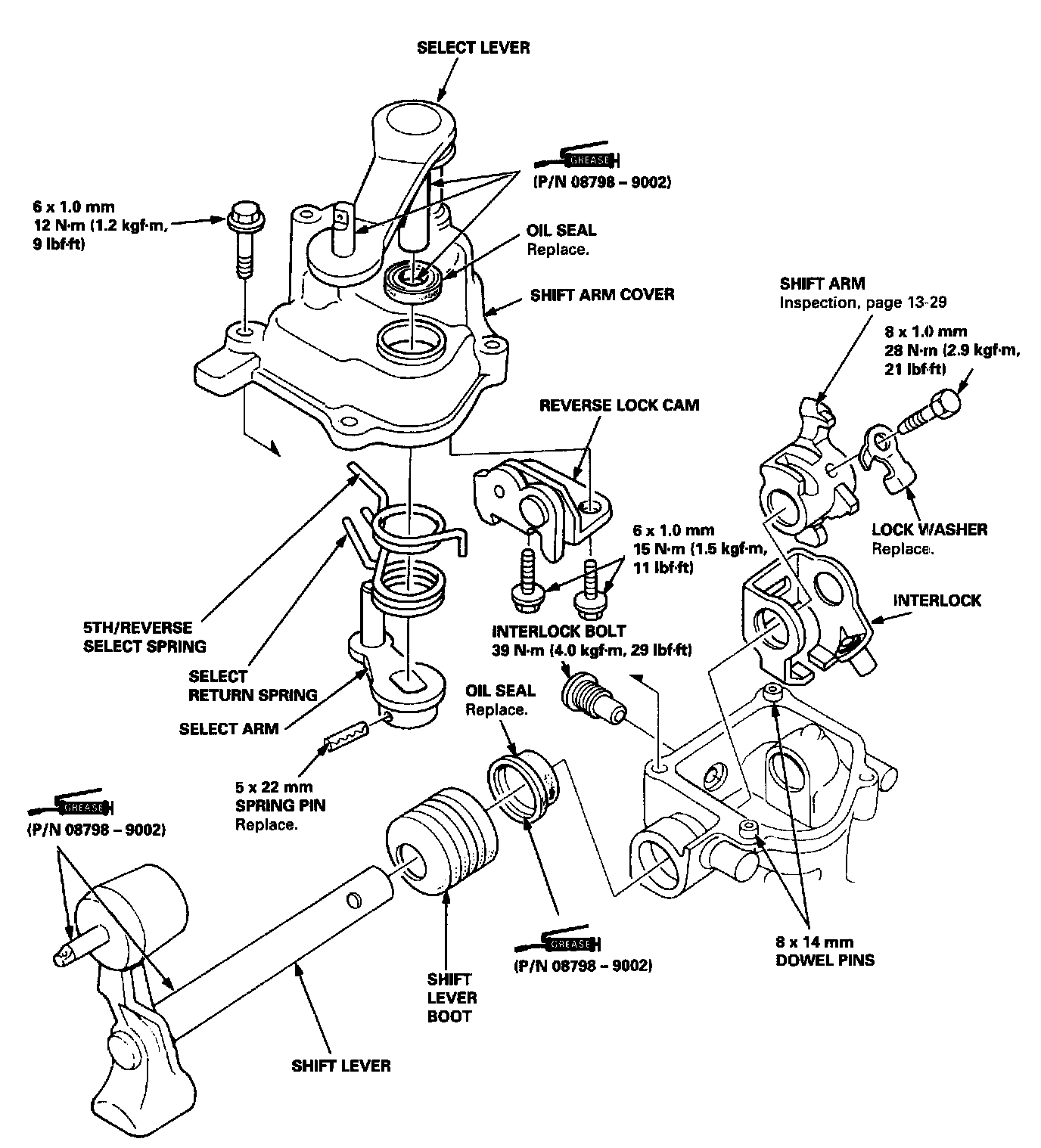

Shift Linkage, M/T
NOTE: -
The shift arm cover can be removed and installed with the transmission in the vehicle.
-
Lubricate all moving and sliding surfaces with the specified grease Super High Temp Urea Grease (P/N 08798-9002).
-
Turn the shift lever boot so the hole in the boot is facing down.
