Pinout Values and Diagnostic Parameters




PCM Terminal Locations

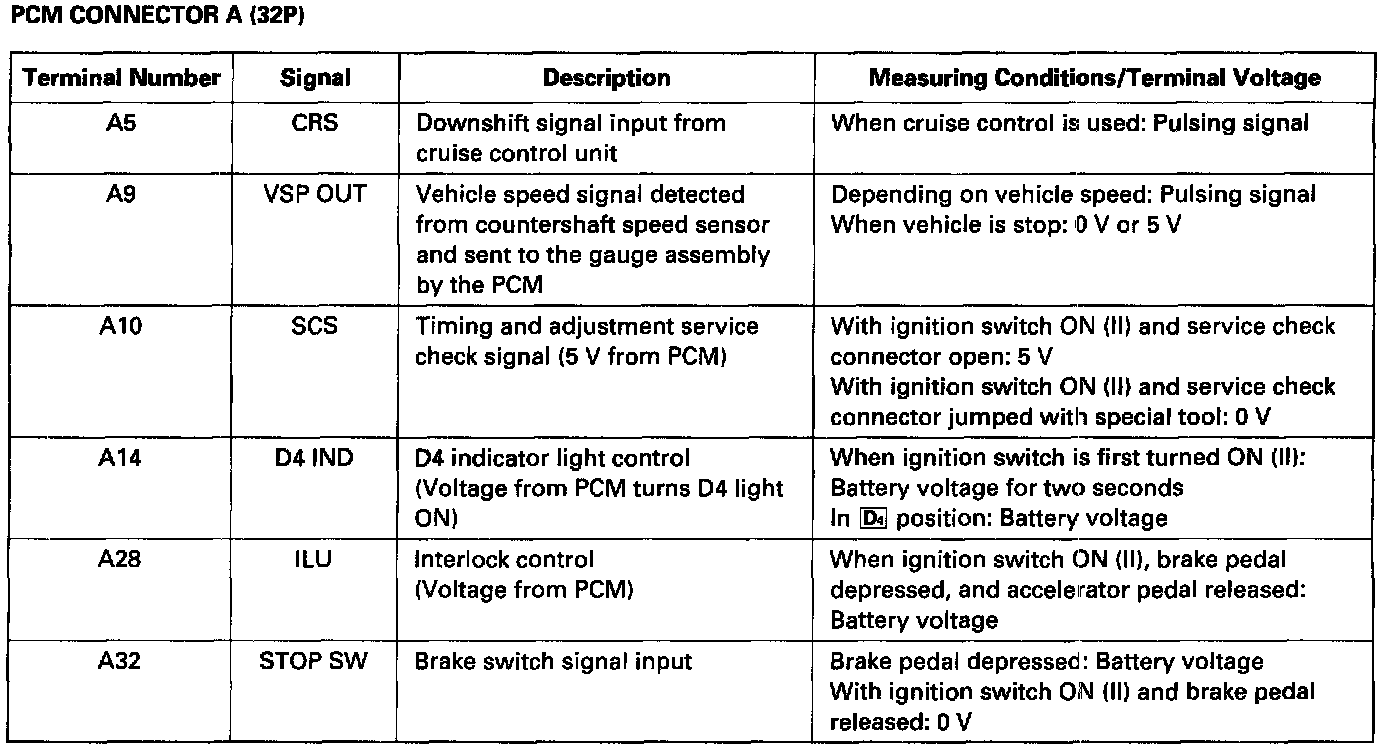

PCM CONNECTOR A (32P)

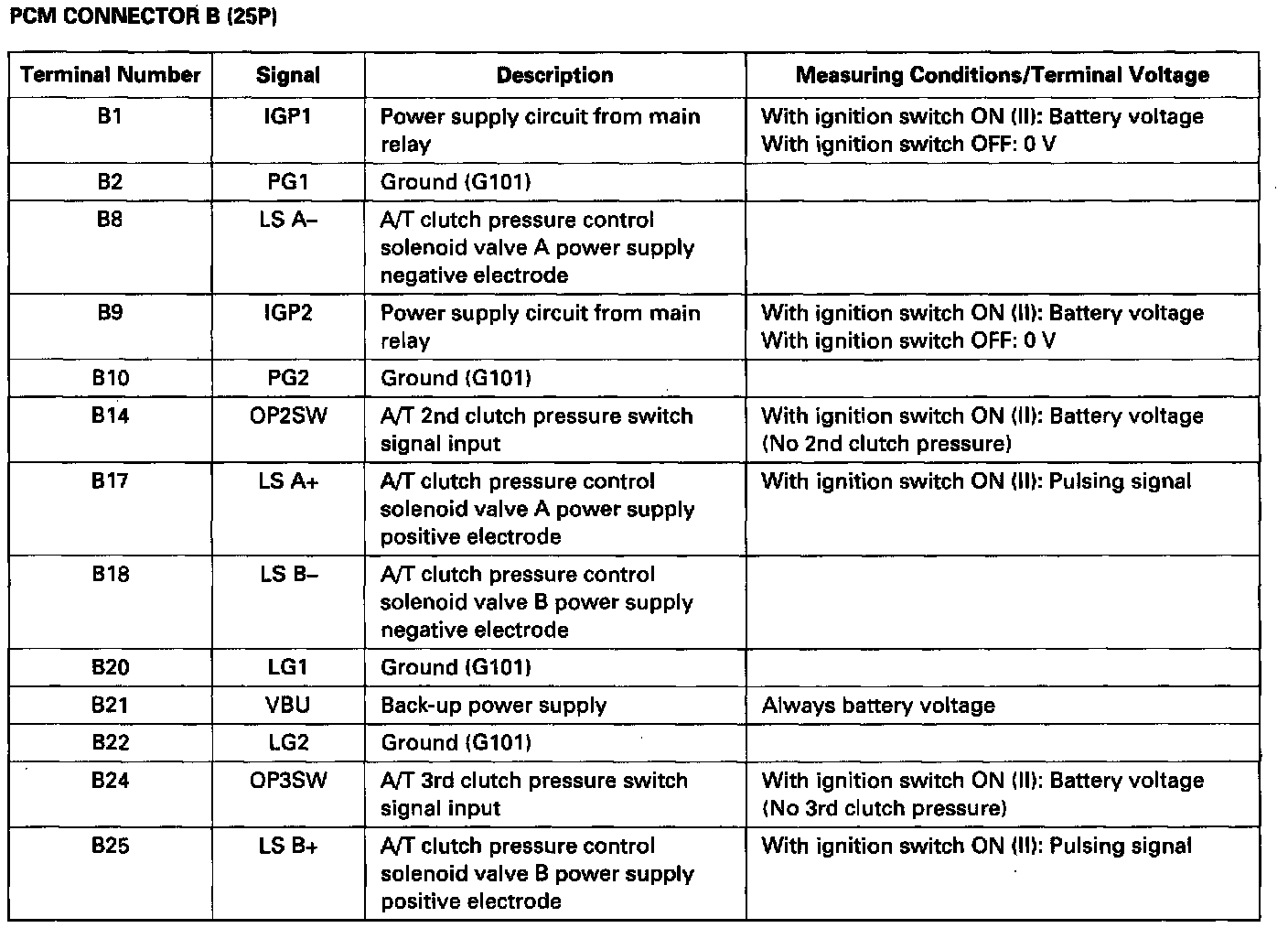

PCM CONNECTOR B (25P)

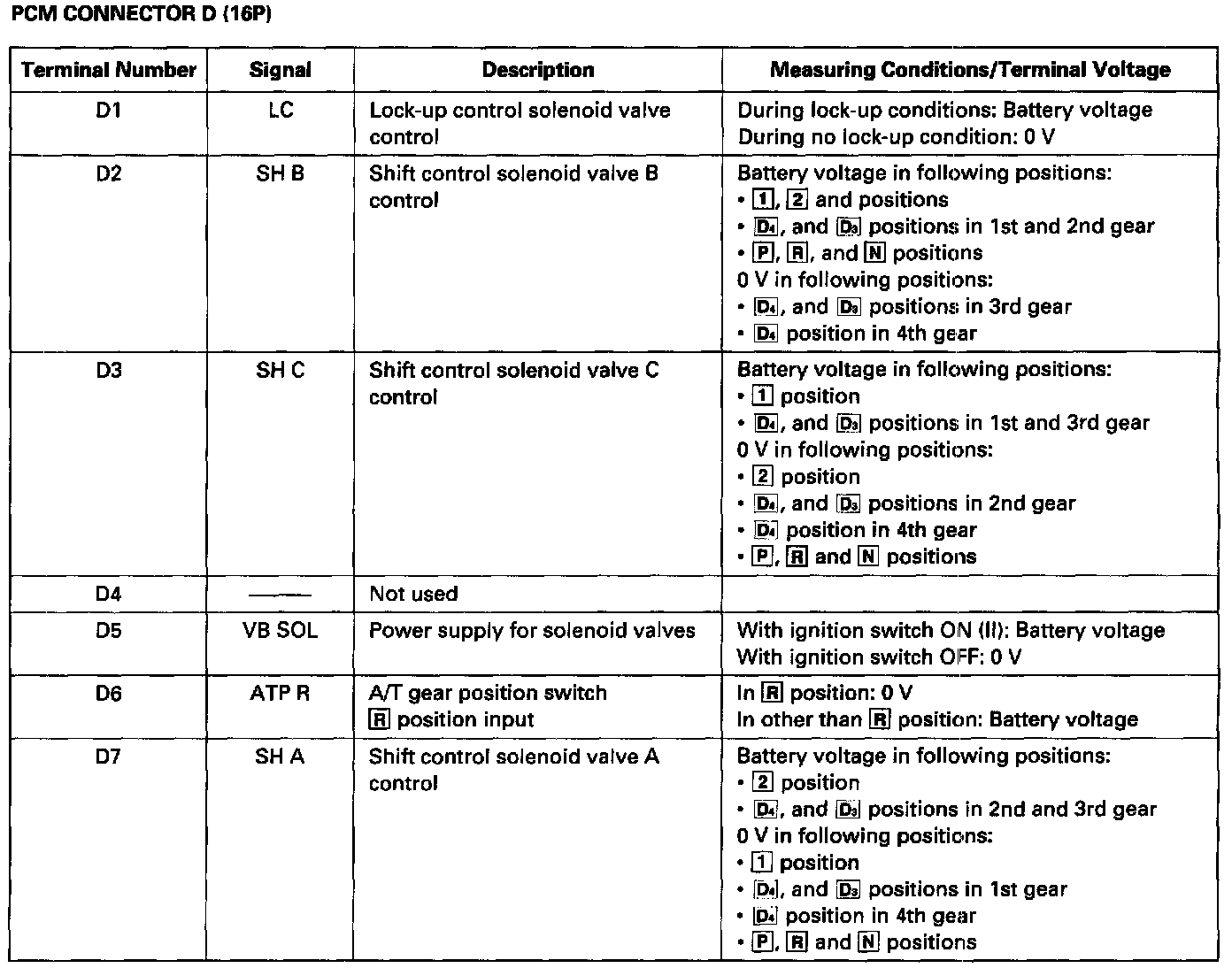

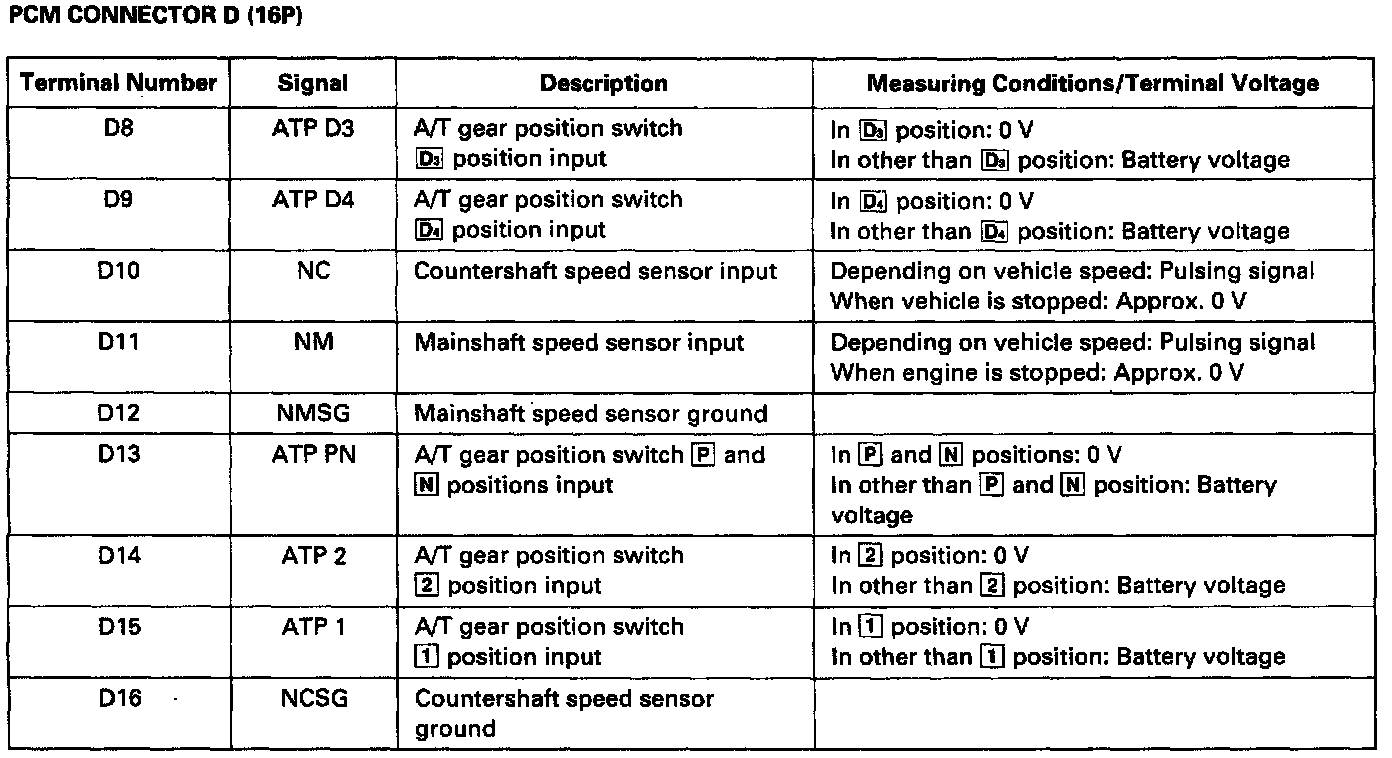

PCM CONNECTOR D (16P)

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the AIT control system. The other PCM terminal voltage and measuring conditions are described in Computers and Control Systems.
