Overhaul

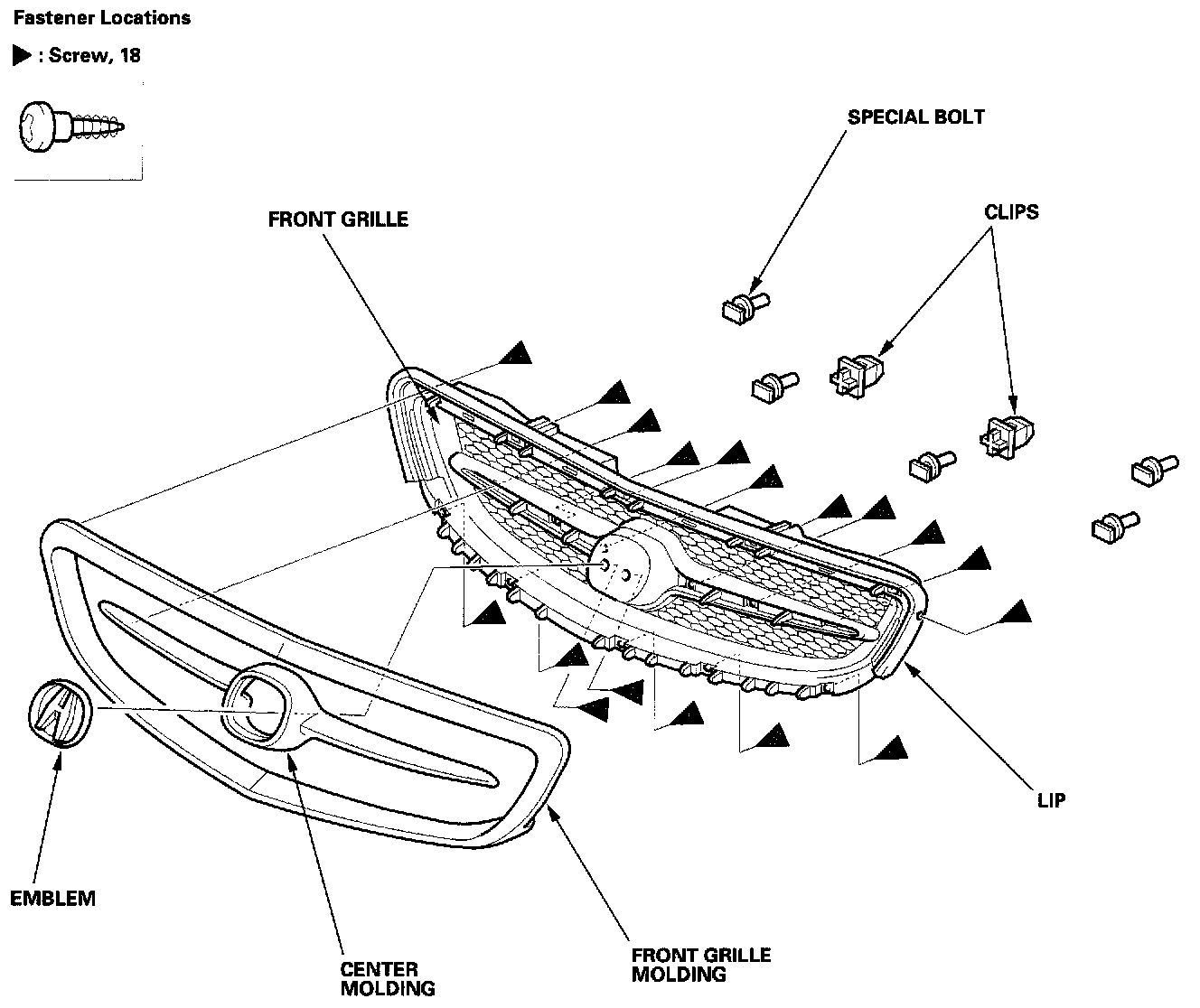

Front Grille Disassembly/Reassembly'99-01 ModelsNOTE: -
Take care not to scratch the front
grille and molding.
-
Take care not to damage the lip. If the lip is damaged, replace the front
grille and lip as an assembly.
1.
Disassemble the front
grille as shown.
2.
Reassemble the
grille in the reverse order of disassembly.
