Radiator Fan Control Module Input Test

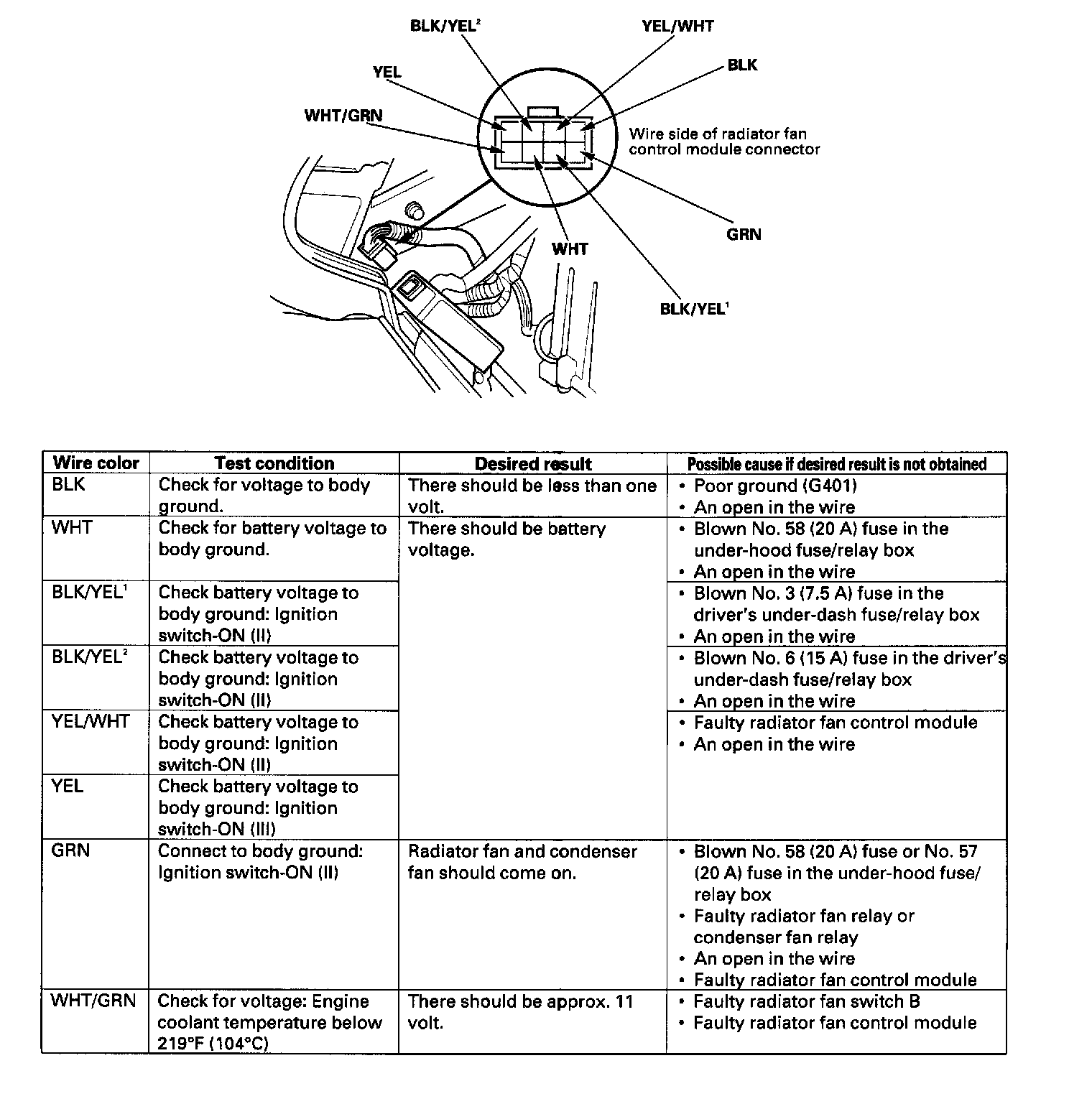

Fan Control Module Input Test 1.
Remove the audio unit.
2.
Perform the following tests with the
radiator fan control module 8P connector connected, the ignition switch ON (II) and the A/C switch OFF. If you find the cause of a problem. correct it before you continue.
