Brake Fluid Level Sensor/Switch: Service and Repair
Brake Fluid Level Switch Test 1.

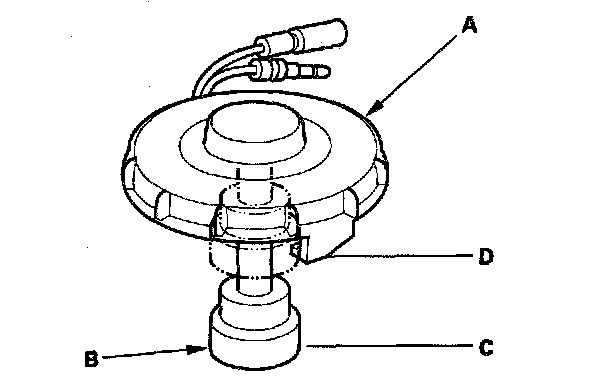

Remove the reservoir cap (A). Check that the float (B) moves up and down freely; if it doesn't, replace the reservoir cap assembly.
2.
Check for continuity between the terminals with the float in the down position (C) and the up position (D):
-
With the float up, there should be no continuity.
-
With the float down, there should be continuity.
