Connector Index

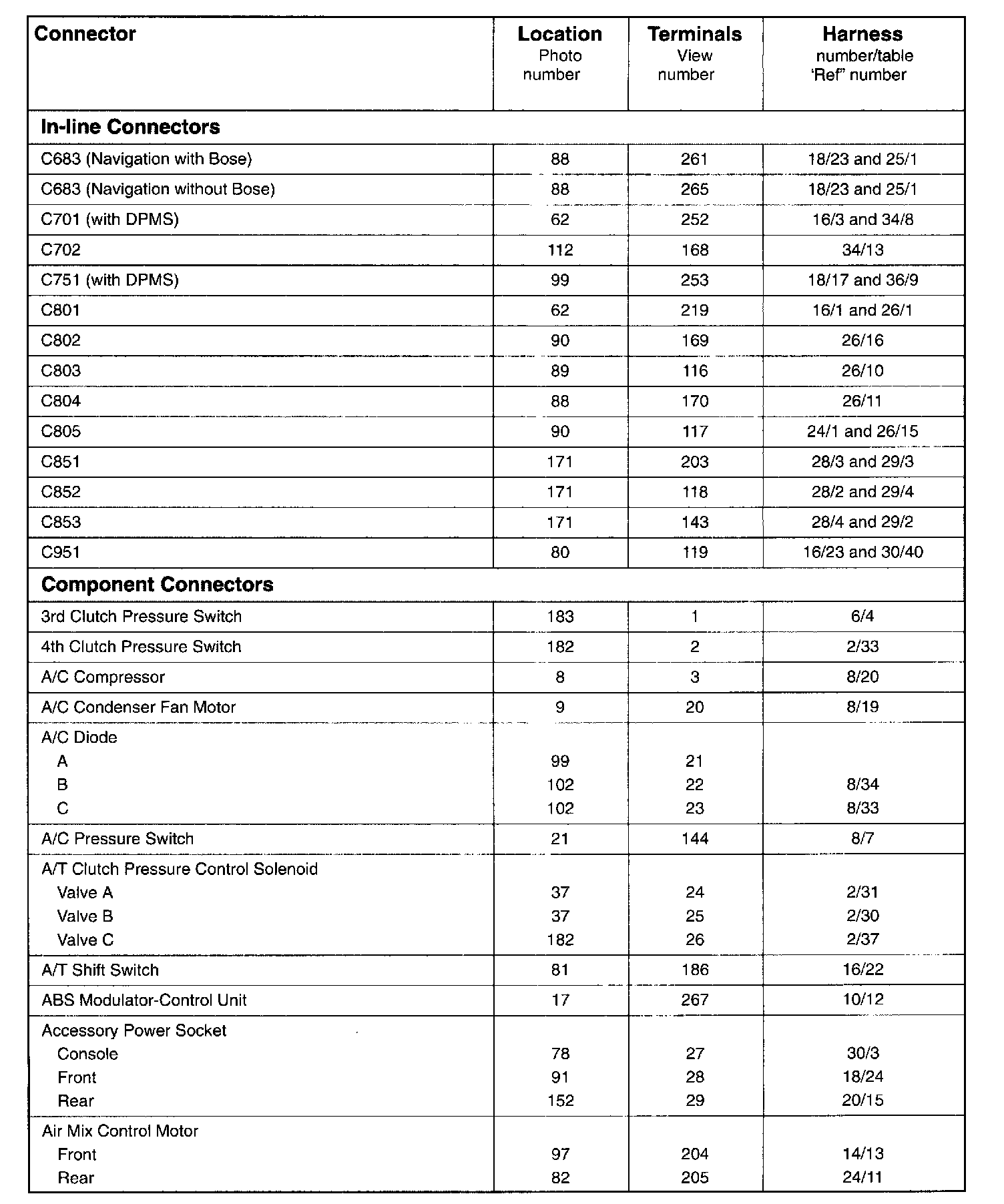

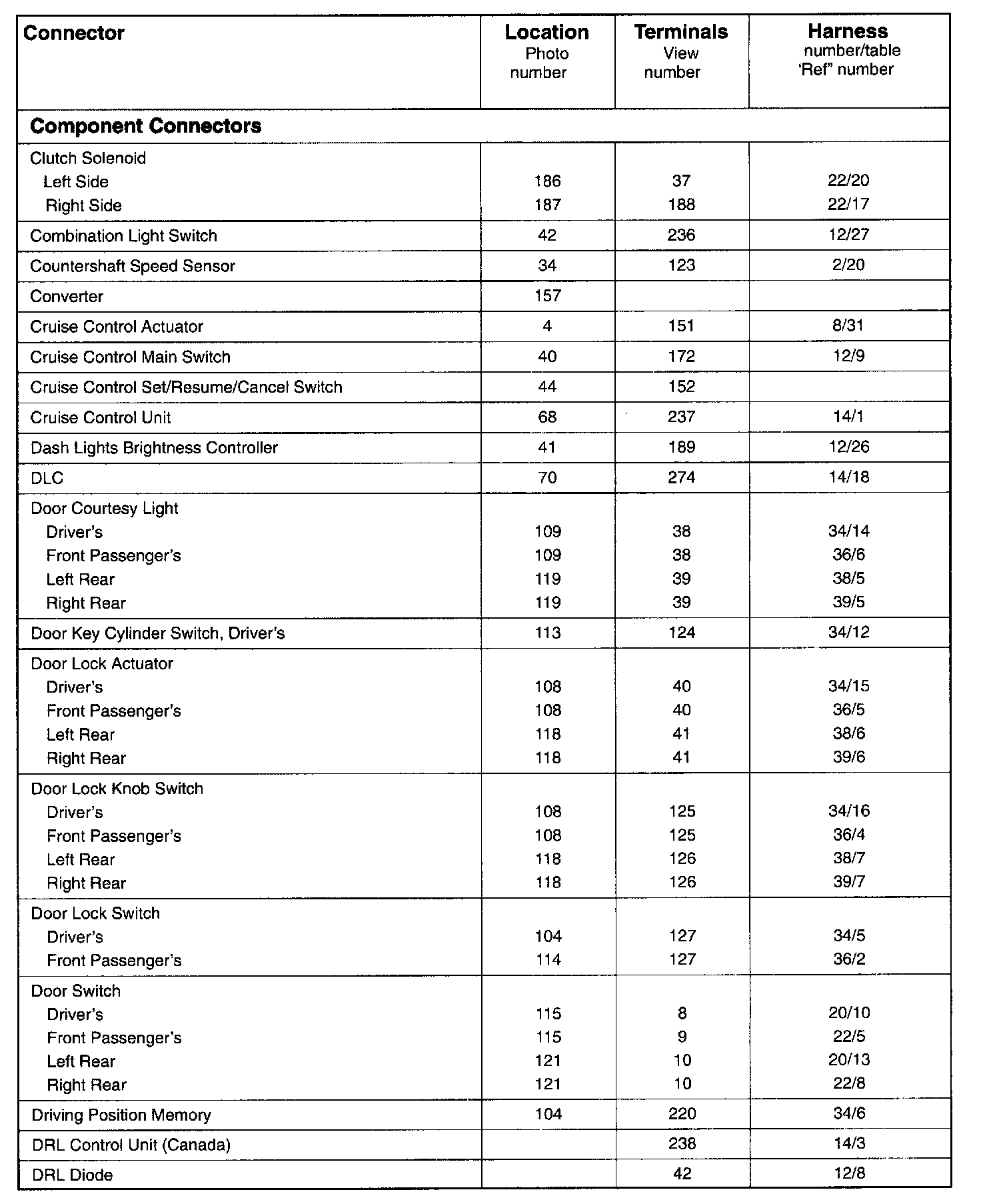

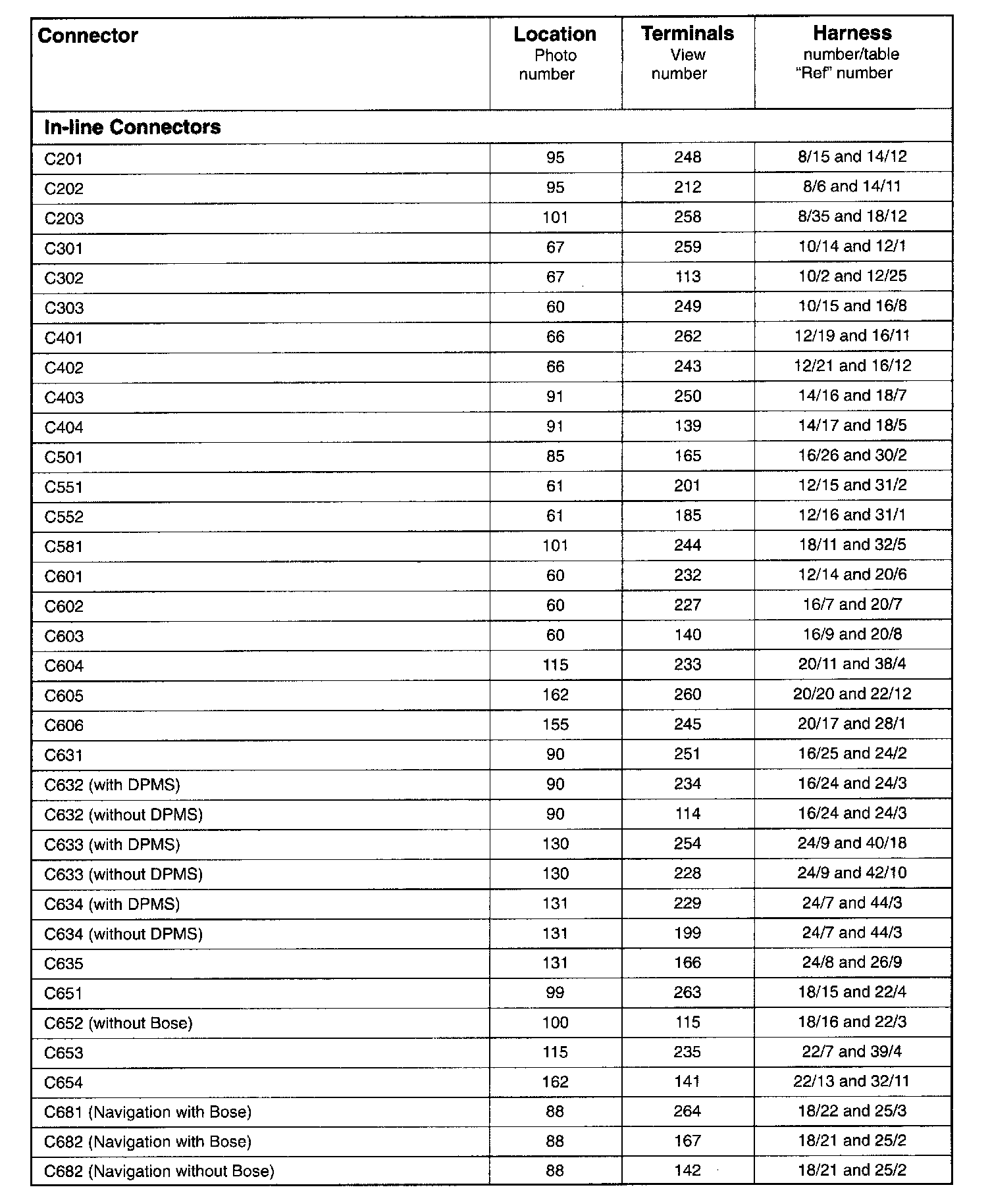

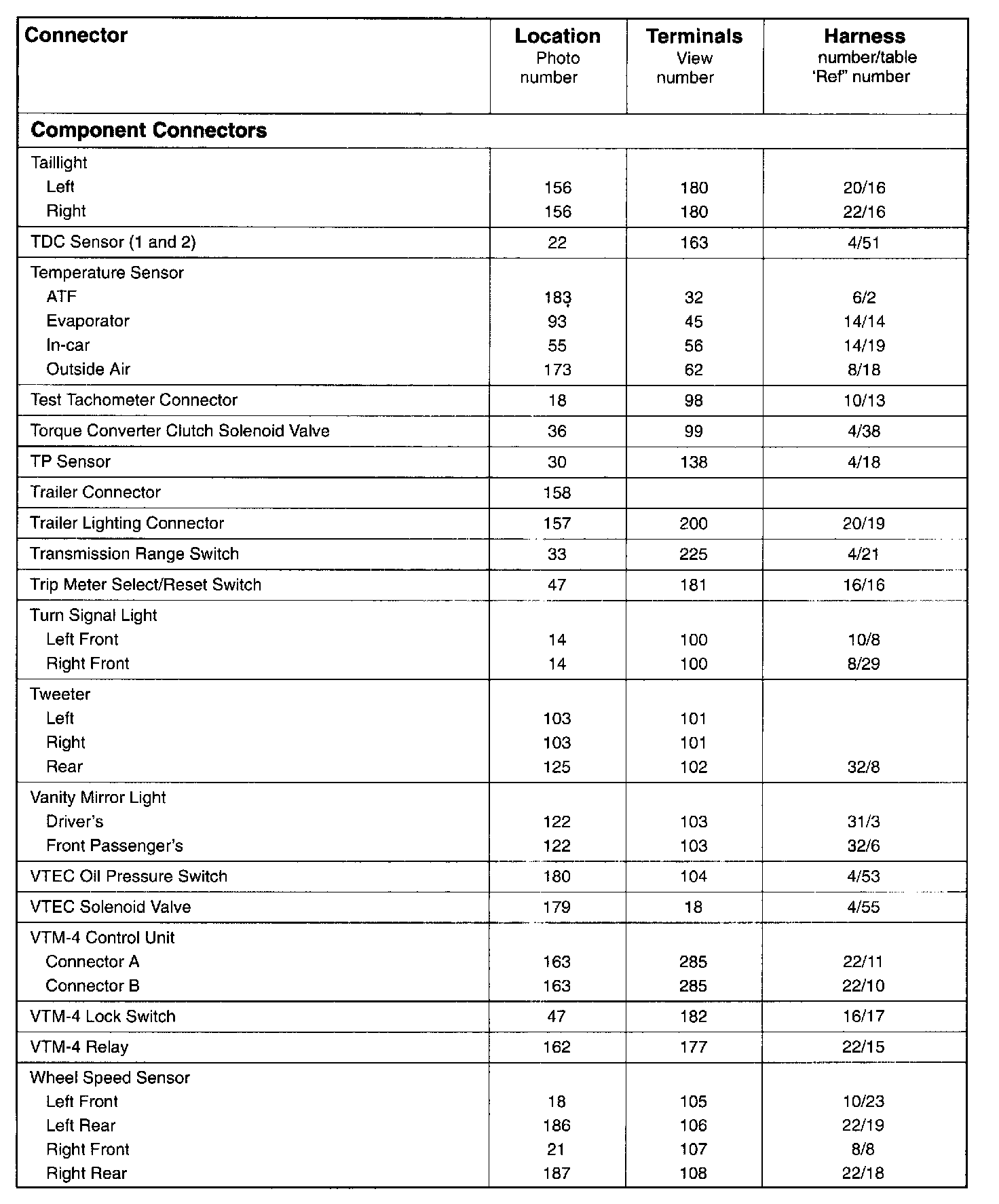

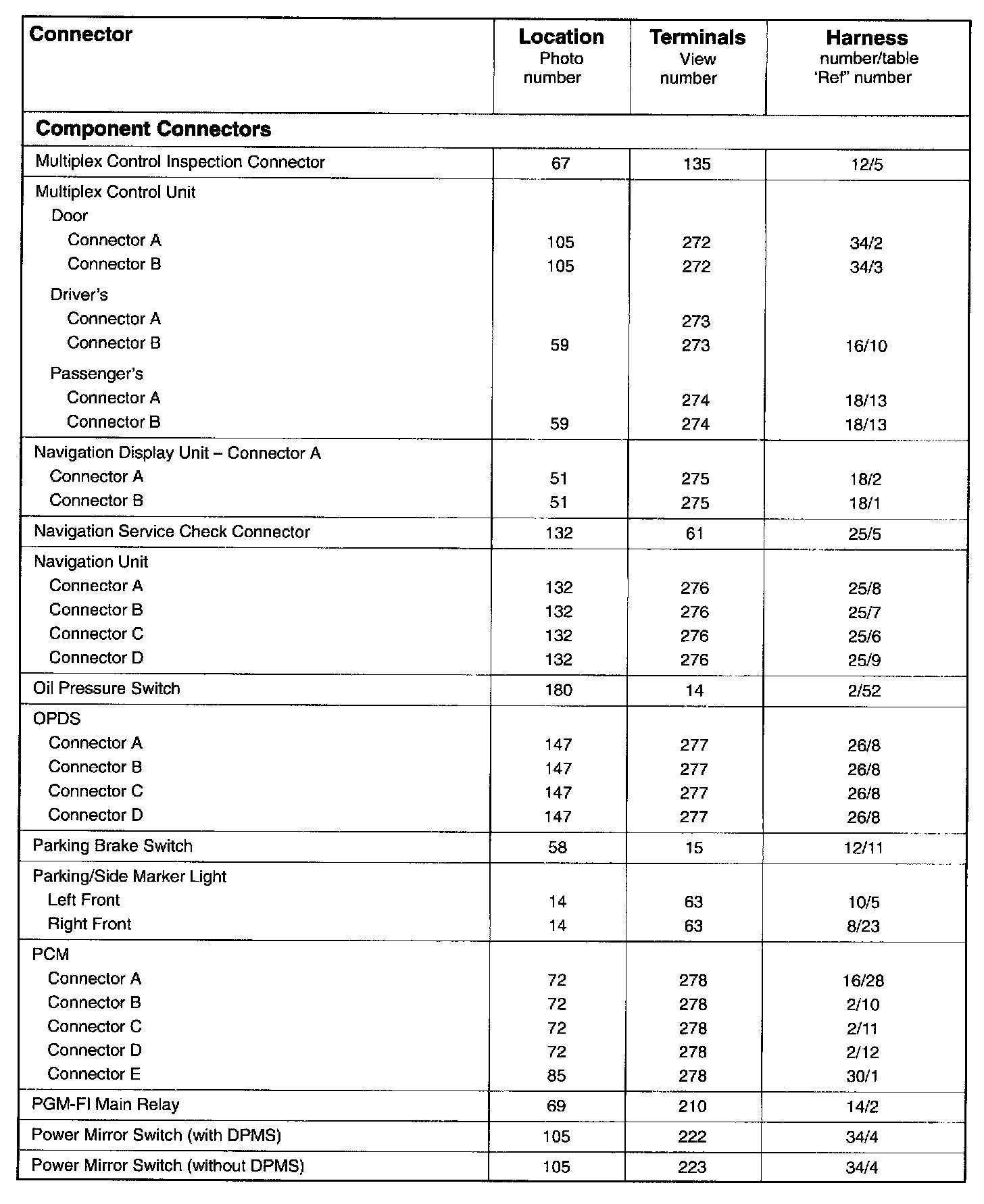

Connector Index (Part 1):

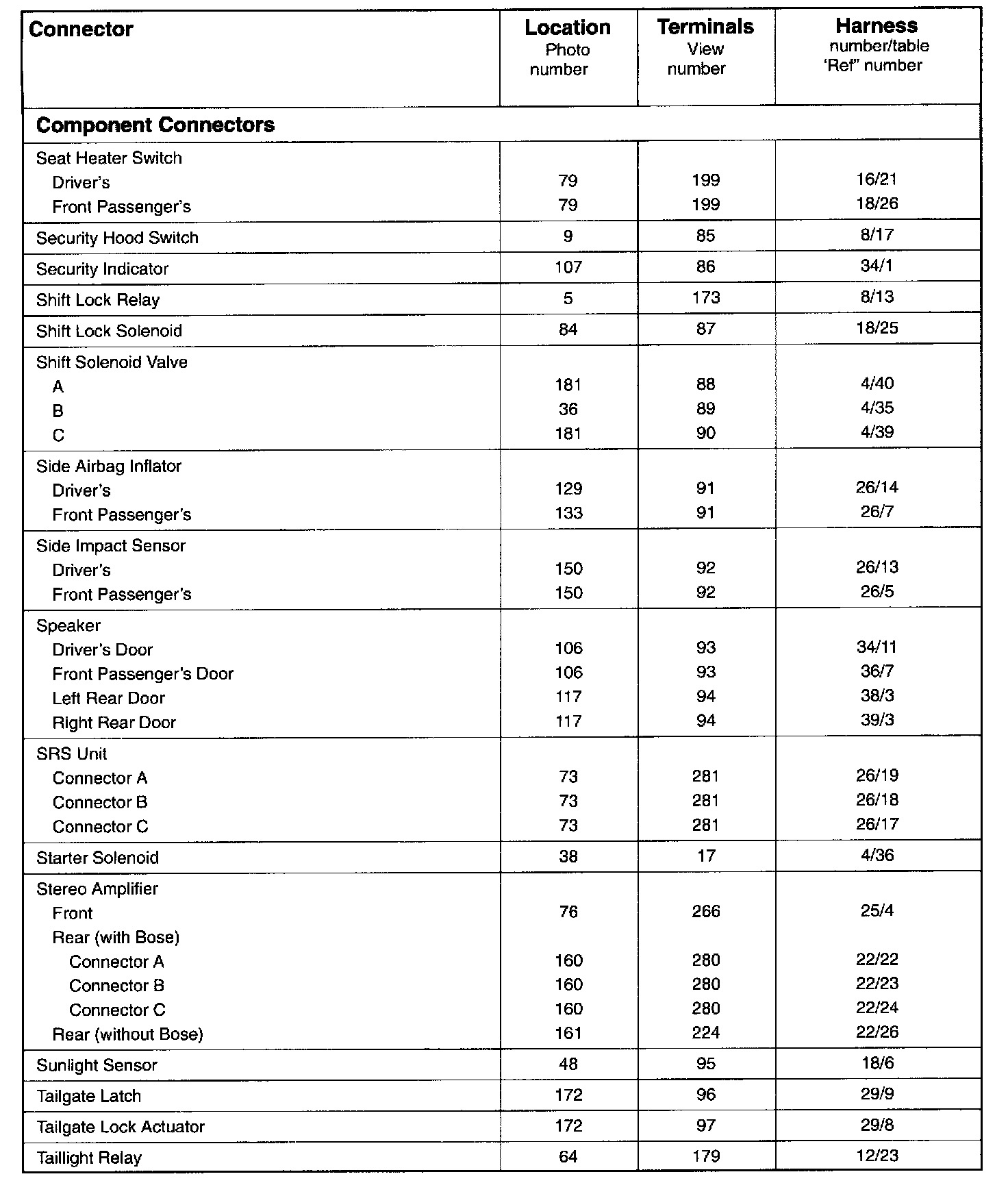

Connector Index (Part 2):

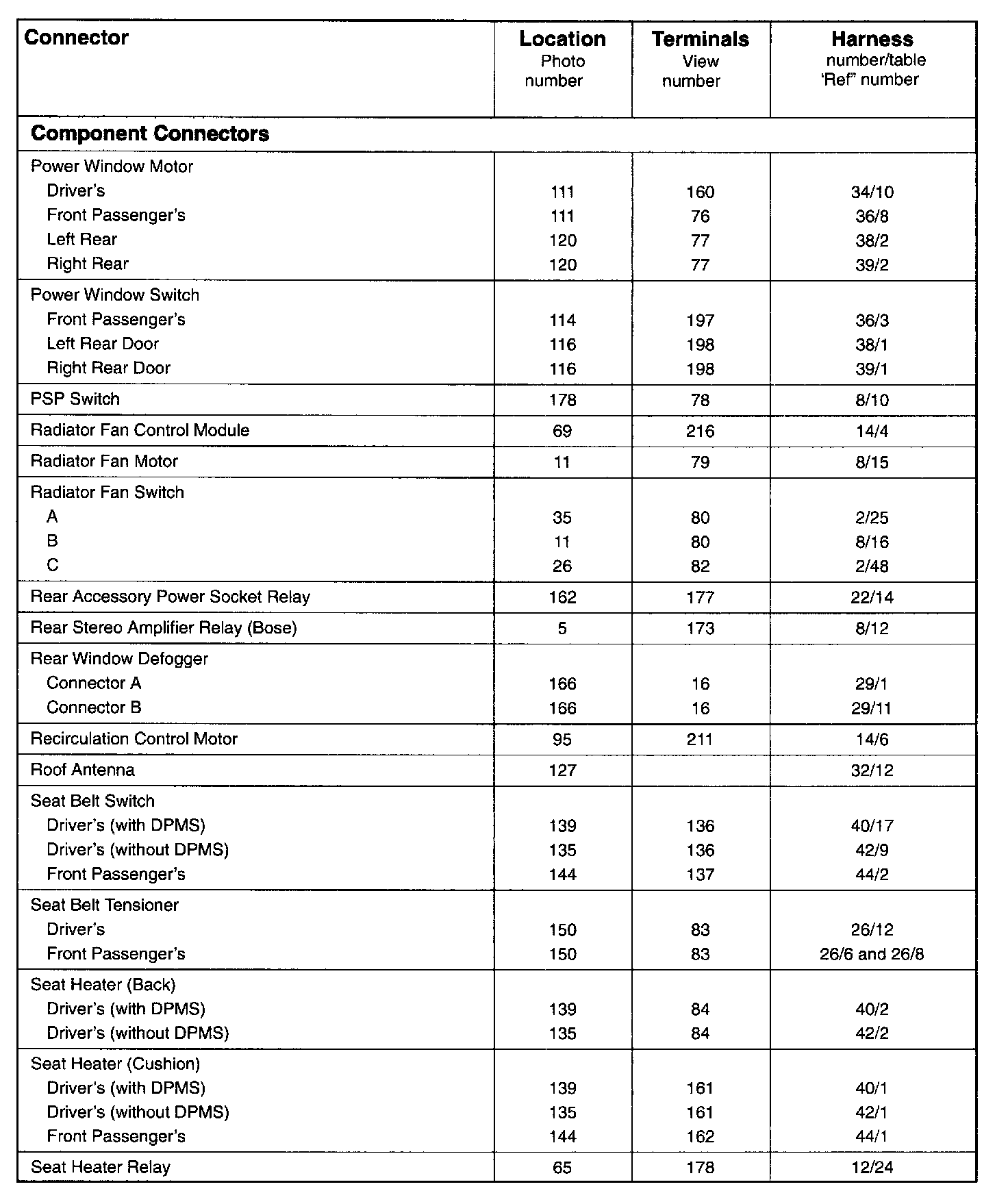

Connector Index (Part 3):

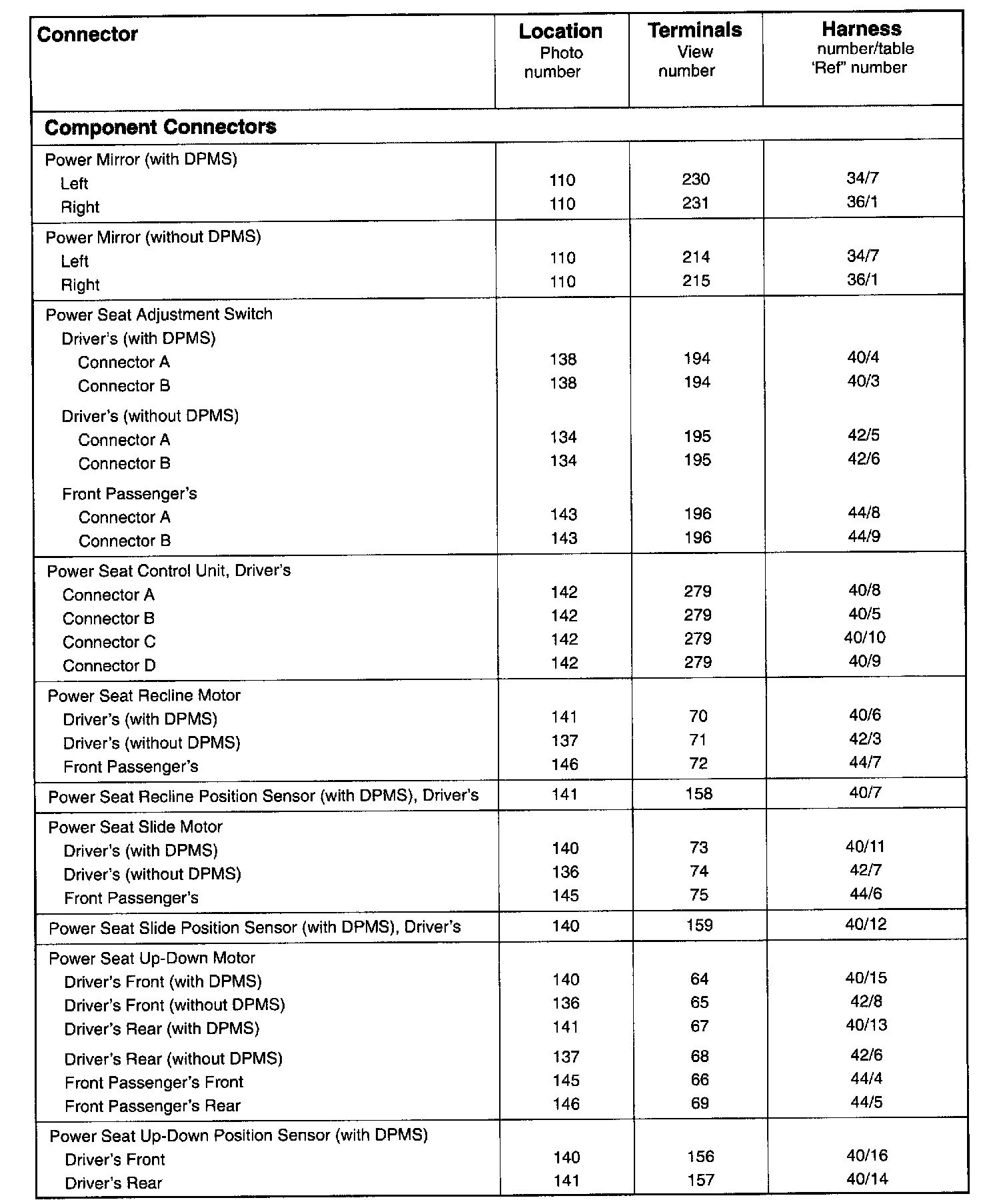

Connector Index (Part 4):

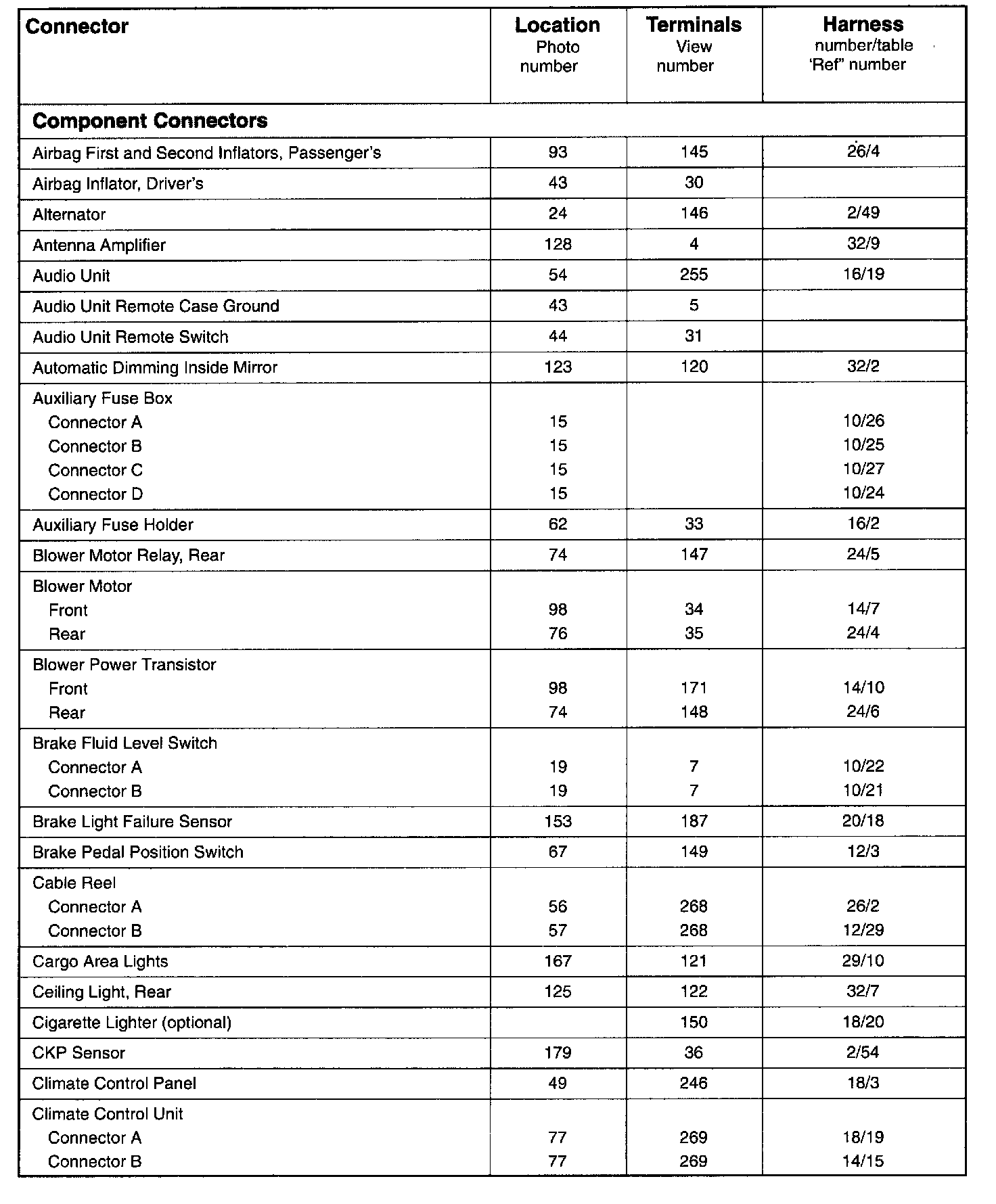

Connector Index (Part 5):

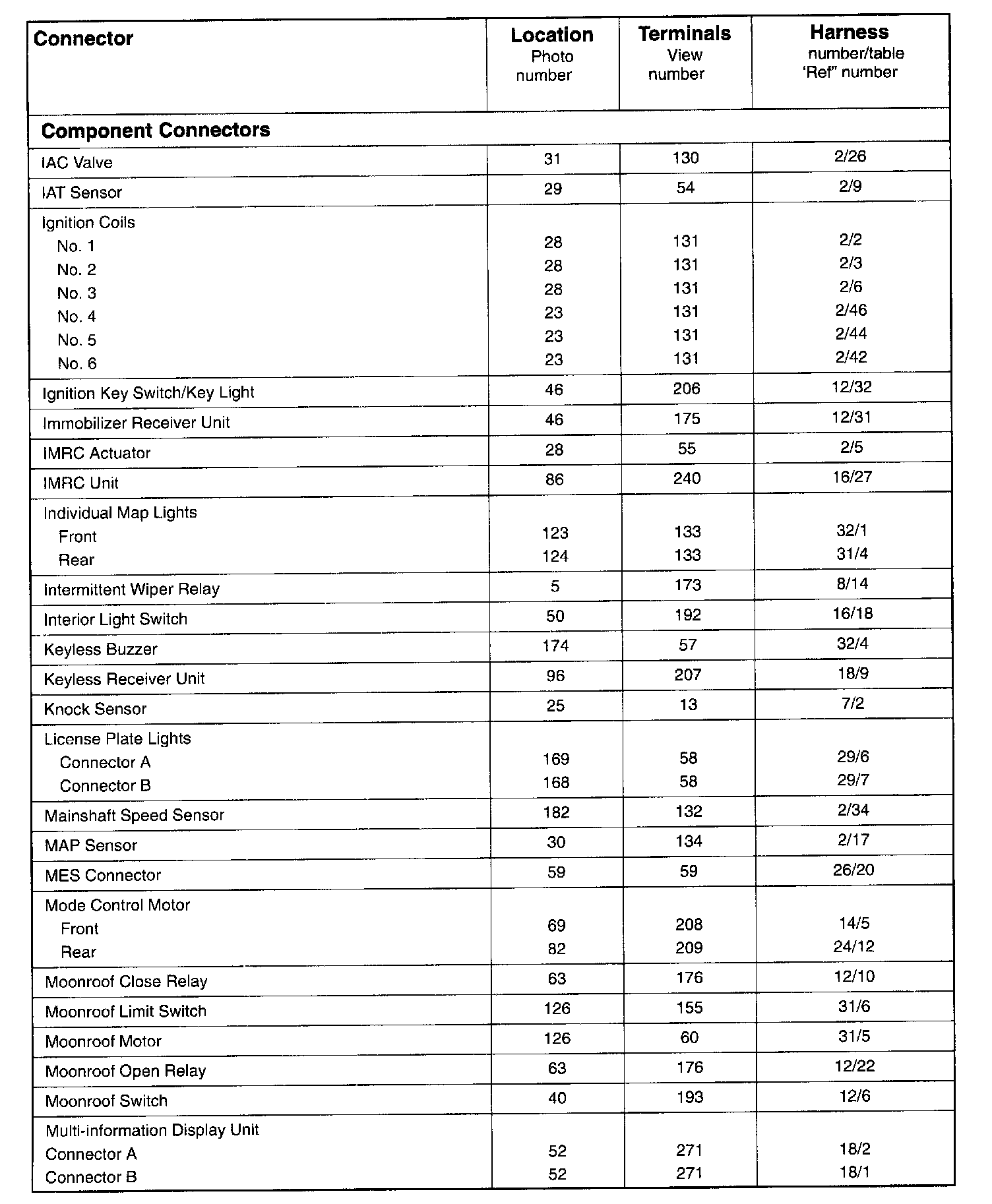

Connector Index (Part 6):

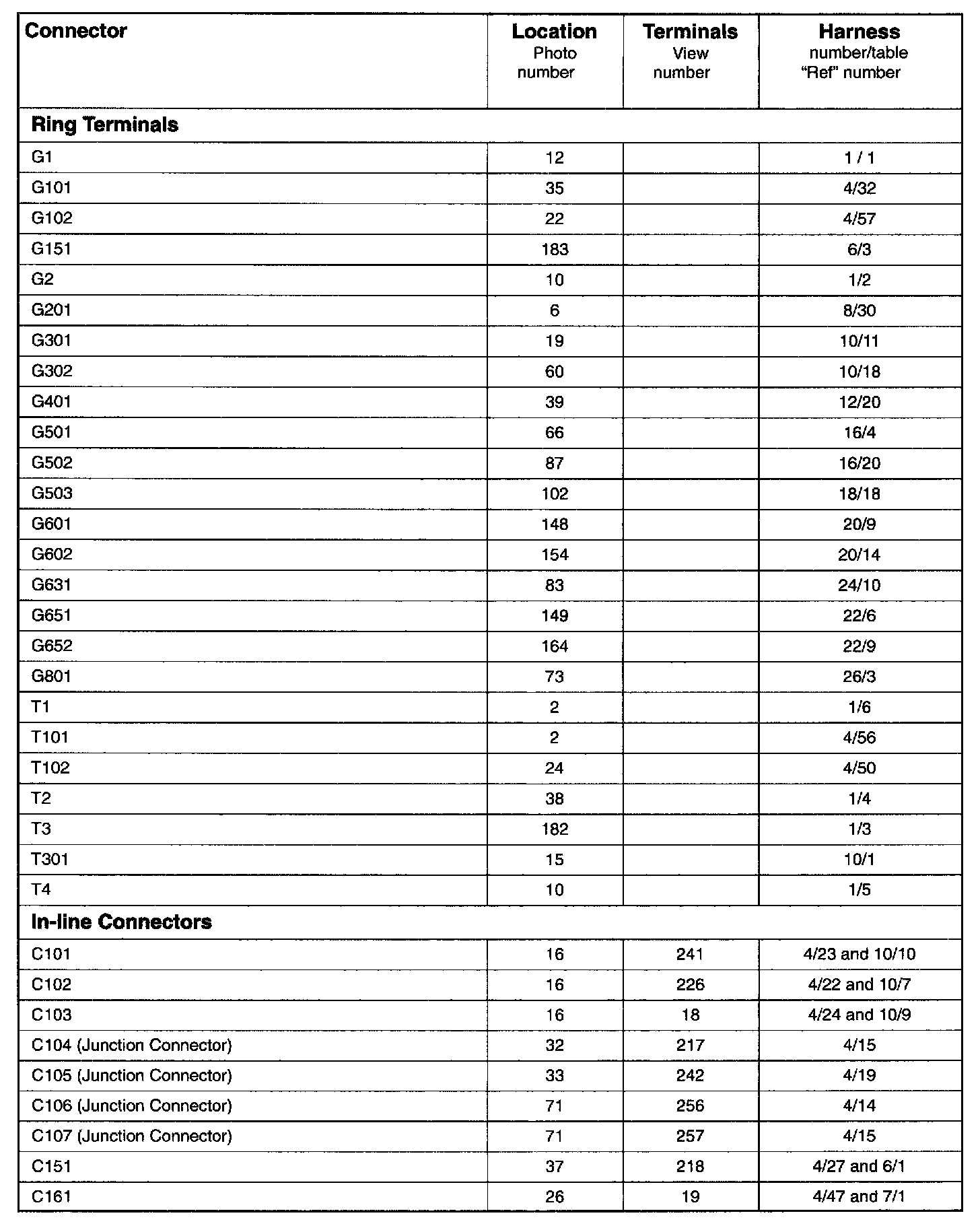

Connector Index (Part 7):

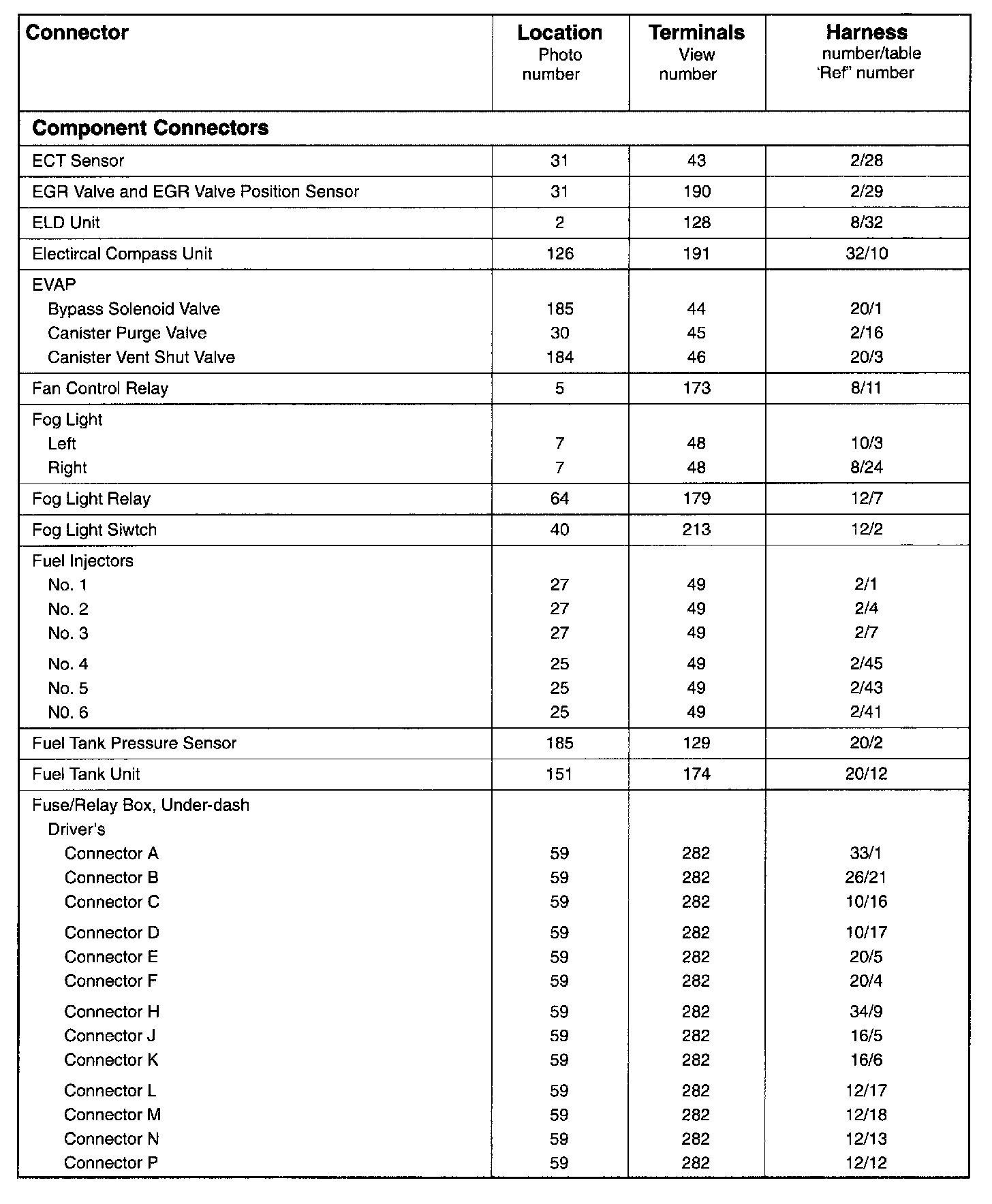

Connector Index (Part 8):

Connector Index (Part 9):

Connector Index (Part 10):

Connector Index (Part 11):

Connector Index (Part 12):

Connector Index (Part 13):

Connector Index (Part 14):

NOTE:
- For Location of Photos, refer to Photographs.
- For Terminal Views, refer to Diagrams, Connector Views.
