Windshield Washer Reservoir: Service and Repair
Washer Reservoir Replacement 1.
Remove the right inner fender.
2.

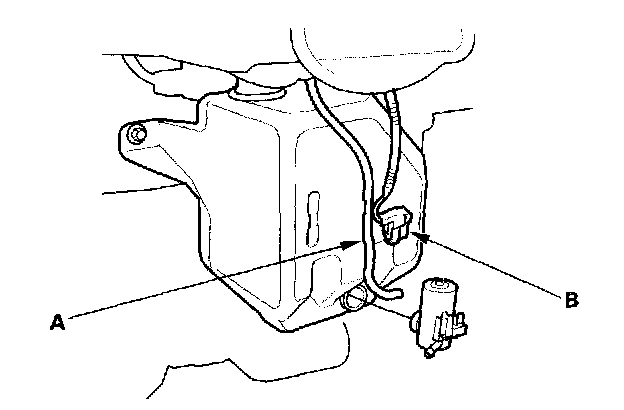

Disconnect the washer tube (A) and washer motor 2P connector (B).
3.

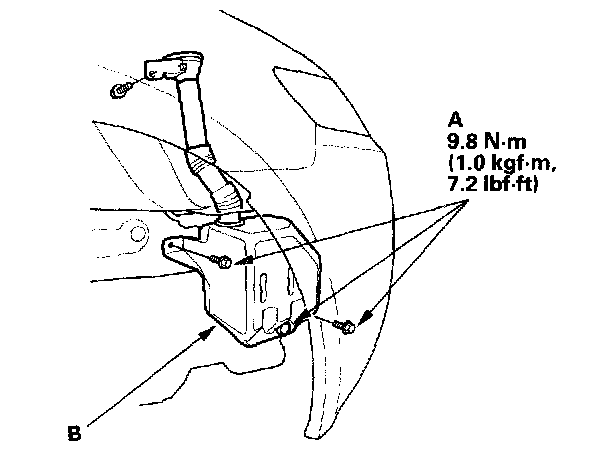

Remove the three bolts (A), then remove the washer reservoir (B).
4.
Install the reservoir in the reverse order of removal.
